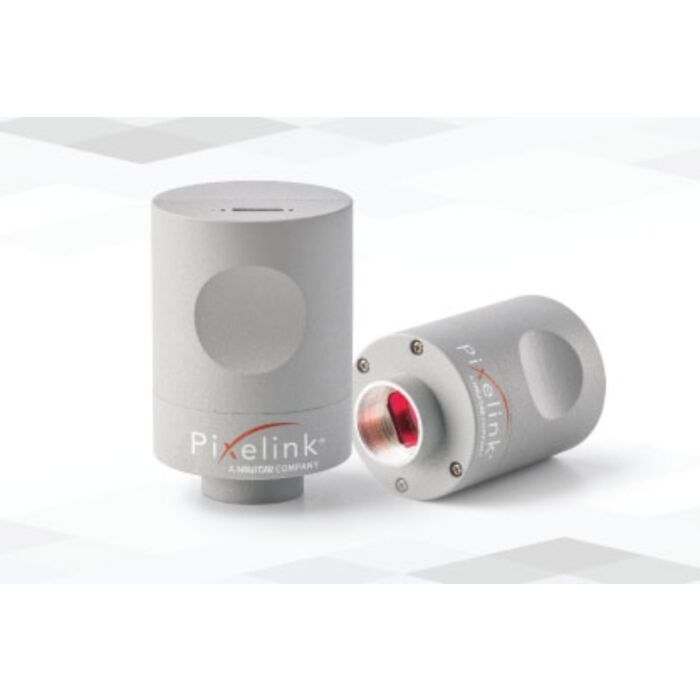

PixeLINK M20 Series CMOS Microscopy Cameras
The M20 microscopy cameras are based on the ON Semi Sony IMX183 CMOS rolling shutter sensor with a 1” sensor size. The M20-CYL is part of the M20 family of Microscopy cameras. The line-up includes:
Color-
M20DC-CYL 20 MP Color (Sony IMX183 Sensor) Camera + 2m USB 3.0 locking cable
M20DC-KIT-CYL 20 MP Color (Sony IMX183 Sensor) Camera + µScope Essentials software + 2m USB 3.0 locking cable
M20DC-PRO-CYL 20 MP Color (Sony IMX183 Sensor) Camera + µScope Professional software + 2m USB 3.0 locking cable
M20C-SE-CYL 20 MP Color Camera (Sony IMX183 sensor)+ µScope Standard software + 2m USB 3.0 locking cable
Monochrome-
M20M-CYL 20 MP Monochrome (Sony IMX183 Sensor) Camera + 2m USB 3.0 locking cable
M20M-KIT-CYL 20 MP Monochrome (Sony IMX183 Sensor) Camera + µScope Essentials software + 2m USB 3.0 locking cable
M20M-PRO-CYL 20 MP Monochrome (Sony IMX183 Sensor) Camera + µScope Professional software + 2m USB 3.0 locking cable
M20M-SE-CYL 20 MP Monochrome (Sony IMX183 Sensor) Camera + µScope Standard software + 2m USB 3.0 locking cable
This camera incorporates the 20 MP, 22 fps, 1”, Sony IMX183 sensor and is ideal for applications requiring high resolution, high QE of 80+%, and very low noise imaging. Common applications include life science, metrology, medical imaging, surveillance/UAV, and even astronomy. The M20-CYL camera's performance rivals currently available sCMOS cameras at a fraction of the price.
Features:
- High QE
- Low Noise
- Higher Resolution than sCMOS cameras
- Microscopy
- Live Cell Imaging
- Microbiology
- Cell Analysis
- Vision Correction
- Packaging Measurements
- Inspection
- Paint Analysis & Dirt Analysis
Applications:
| Sensor | Sony IMX183 |
| Type | CMOS Rolling Shutter |
| Resolution | 20 MP (5472x3648) |
| Pixel Pitch | 2.4 µm x 2.4 µm |
| FPN | < 0.02% of signal |
| PRNU | < 0.1% of signal |
| Dynamic Range | 73.6 dB |
| Bit Depth | 12-bit |
| Color Data Formats | Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422 |
| Mono Data Formats | Mono 8, Mono 12 Packed & Mono 16 |
| Interface | Data Rate | USB 3.0 | Micro-B | 5Gbps |
| Dimensions | 80.88 x Ø54.01 (without lens mount) |
| Weight (g) | 218.5 (without optics) |
| Mounting | C-Mount |
