Navitar Apidae Wide (2/3") and Narrow (1/2") High-Performance 4K HDR Lenses
Apidae high-performance lenses are designed for 2/3" & 1/2" sensors such as Sony IMX are available with either a fixed aperture stop or motorized switchable iris for day/night applications. Offering a Wide (4.3mm) and Narrow (18.5mm) lens option, the Dragon modules are optimized for 16mm diagonal sensors. Thermal performance is excellent to a temperature max of 85°C.
SKU

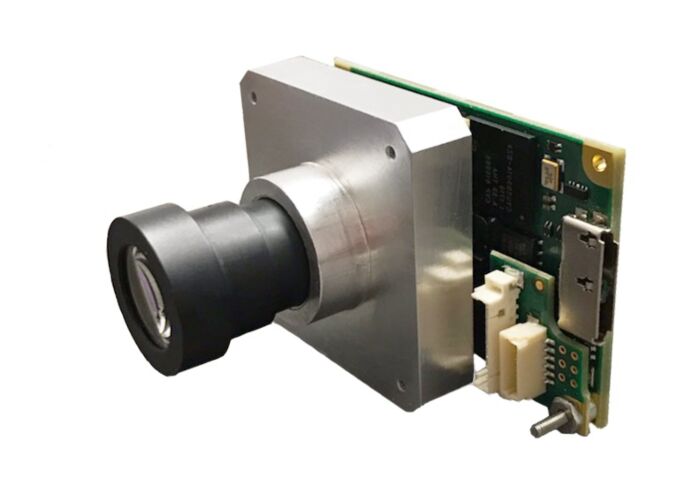

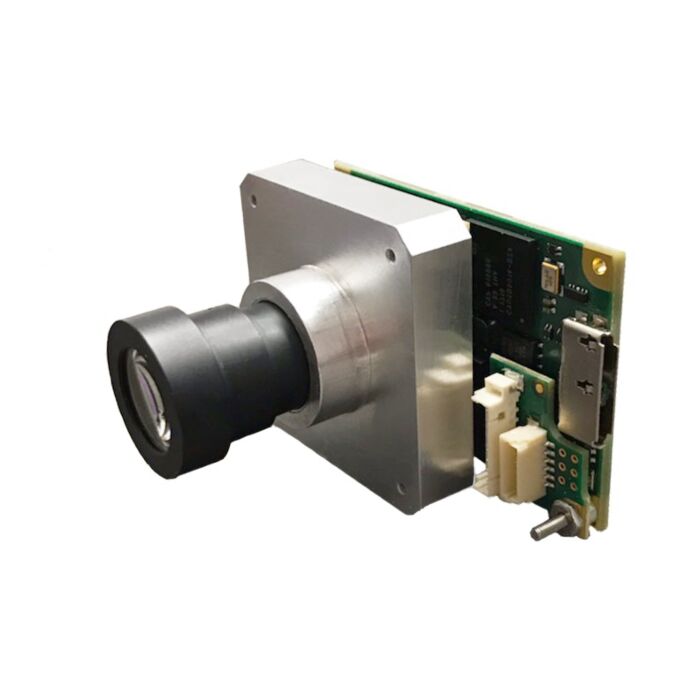

Navitar Apidae Wide and Narrow High-Performance 4K HDR Lenses
The Navitar Apidae Leness are a part of the high-resolution lenses Navitar built for demanding imaging applications such as unmanned aerial vehicles (UAV) and autonomous vehicle (AV) forward-facing camera systems. Multiple fields of view are offered for 1/2", 2/3" and 1" sensor formats.
Features:
Applications:
Apidae Wide Specs:
| Field of View | 142° |
| F/number | f/2.8 |
| Focal Length (mm) | 40 |
| MTF | >50% across field at 145 lp/mm |
| Waveband | Visible |
Apidae Narrow Specs:
| Field of View | 24.4° |
| F/number | f/2.8 |
| Focal Length (mm) | 32.5 |
| MTF | >50% across field at 145 lp/mm |
| Waveband | Visible |
