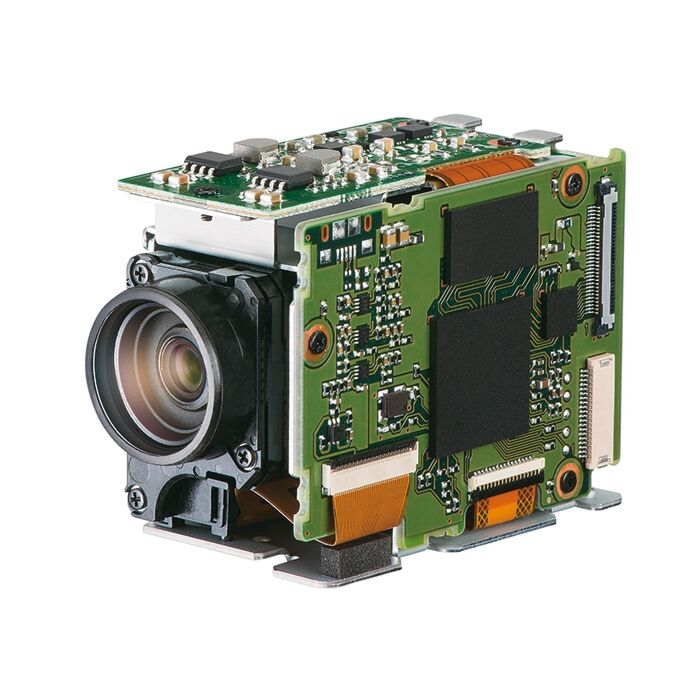

Tamron MP1110M-VC Ultra-Compact 10x zoom 1/3" Zoom Block Camera

With the MP1110M-VC, Tamron launches a second zoom camera module after the MP1010M-VC.

SKU
MP1110M-VC

MP1110M-VC has an extended range of functions compared to MP1010M-VC . The new module also impresses with its image quality, an ultra-compact form factor and low weight.



Features:

  • 10x optical zoom (160x with 16x digital)
  • Full HD 1080p 60 fps
  • 1/3 '' CMOS sensor (about 4MP)
  • 3.3mm to 33.6mm focal length
  • 31.9 x 41.5 x 58.4 mm³ (W x H x L)
  • Optical Image Stabilization (Gyro-Sensor)
  • Only 77g
  • NEW: Analog SD video output (PAL / NTSC)
  • Noise Reduction (3D + 2D)
  • De-fog correction
  • Wide Dynamic Range



Applications:

  • Pipe Inspection
  • Unmanned Aerial Vehicles
  • Robotics
  • Video Conferencing
  • Underwater Applications
  • Security/Surveillance
Image Sensor 1/3-type CMOS (Progressive Scan)
Effective number of pixels Approx. 4,080,000 pixels
Signal System (HD)

1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25

Minimum Illumination 0.5 lx (1/30sec, F1.8, 50%)
Recommended Illumination 100 lx to 100,000 lx
S/N Ratio More than 50dB
Gain Auto/Manual
Shutter Speed 1/1 to 1/10,000 sec
Sync System Internal
Exposure Compensation -12dB to +12dB (Total 13 steps)
Backlight Compensation ON/OFF
Gamma Standard
Aperture Control 16 steps
White Balance ATW1 (Narrow), ATW2 (Wide), One Push, Manual (B, R)
AE (Auto exposure mode) Auto, Manual, Priority mode (shutter/iris)
Lens 10x optical zoom,
f=3.2mm (wide) to 33.6 mm (tele)
F1.8 to F3.4
Zoom Mode Standard/Variable/Direct
Zoom Movement Speed 1.5 sec
Focusing System Auto, Manual, One Push, AF Sensitivity
Horizontal Viewing Angle (Wide) to (Tele)  62 degrees to 6.5 degrees
Minimum Object Distance (Wide) to (Tele)  10mm to 800mm
Horizontal Resolution  800 TV Lines
Features VC (Vibration Compensation), Wide-D, Defog, Noise Reduction (3D + 2D), Digital Output, Privacy Zone Masking, Slow Shutter, Picture Effects (Black White), Picture Freeze, Electronic-Flip (E-Flip), Mirror Image, Temperature Readout, Title Display, Camera Mode Display
Video Output Digital: Y/PB/Pr 4:2:2 (LVDS)
Camera Control Interface VISCA protocol *VISCA is a trademark of Sony Corporation
Power Requirement 8V to 12V DC
Power Consumption  Approx. 3W
Operating Temperature  -5 °C to +°60C
Storage Temperature  -40 °C to +°60C
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 20% to 90% (no condensation)
Dimensions (W x H x D) 31.9 x 41.5 x 58.4 mm
Weight Approx. 77g
 standard definition video Yes
digital zoom Yes
distortion correction Yes
 Motion Detection Yes
