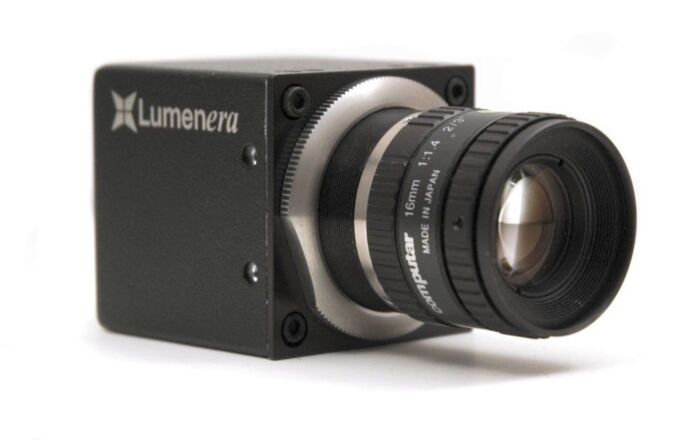

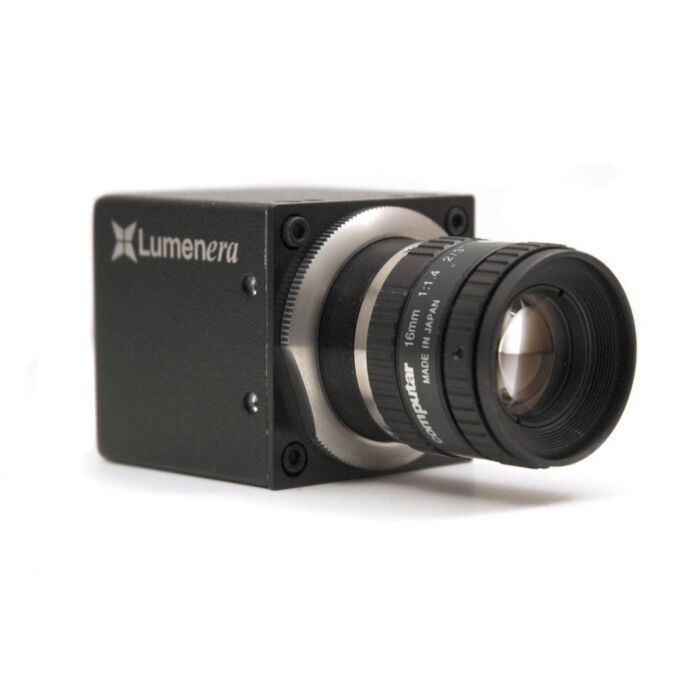

Lumenera LM165 / LM160 USB Camera
1392 pixels x 1040, 2/3" PS CCD, 15 fps, mini USB 2.0 Camera.
Available Versions:
Color-Cased (LM165C)
Color-Board Level (LM160C)
Monochrome-Cased (LM165M)
Monochrome-Board Level (LM160M)
SKU
Lumenera LM165
Measuring 44x44x56mm, these compact cameras offer the same performance as our enhanced USB 2.0 camera line, delivering outstanding image quality and value. Features include new locking industrial mini USB and RJ45 GPI/O connector, multiple mounting points, 60 fps at full 640x480 resolution, 100+ fps at 320x240 binning mode, and on-board processing and sensitivity provide outstanding image quality. Both color and monochrome product models are fully supported by the Lumenera Software Developer’s Kit with an application programming interface compatible with C++ and Visual Basic.
| Image Sensor | 2/3” format, color or mono, 9.0mm x 6.7mm array |
| Effective Pixels | 1392 x 1040, 6.45µm square pixels |
| Frame Rate | 15 fps at 1392 x 1040, 30 fps at 640x480 (binned or ROI) |
| Sensitivity | Extremely High |
| Dynamic Range | 66dB |
| Exposure | Manual |
| White Balance | Auto / Manual |
| Dimensions (W x H x D) | 2.2 x 1.7 x 1.7 inches (56x44x44mm) |
| Mass | TBD |
| Power Requirement | USB bus power or external 5VDC, 500mA |
| Power Consumption | ~2.5 Watts |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 5% - 95%, Non-condensing |
| Interface Connector | Locking mini USB cable & RJ45 GPI/O connector |
| Lens Mount | Adjustable C-Mount, (CS-Mount option) |
| Frame Buffer | 1 frame buffer (optional expansion to 50 frames) |
