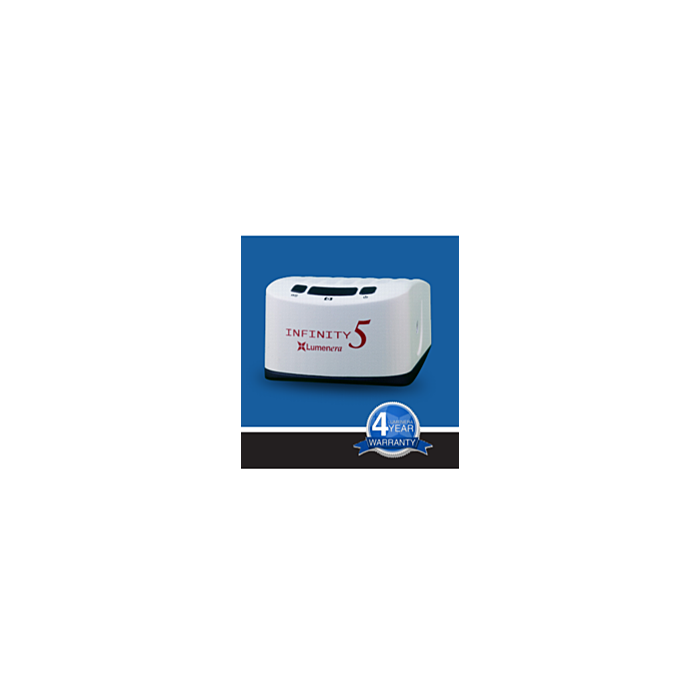

Lumenera INFINITY5-5 5.1 Megapixel Global Shutter CMOS Microscope Camera

Lumenera’s INFINITY5-5 is a high-quality 5-megapixel microscopy camera that provides high speeds at high resolution. The INFINITY5-5 is based on the Sony® Pregius™ global shutter CMOS sensor that rivals CMOS technology. With fast focusing at high frame rates of up to 75 frames per second, the INFINITY5-5 performs in a wide range of applications.
SKU
Lumenera INFINITY5-5 5.1 Megapixel Microscope Camera

The INFINITY5-5’s 2/3 inch sensor format accommodates a 2464 x 2056 resolution with 3.45 micron pixels. The HDMI output allows the INFINITY5-5 to connect to both a computer and HDMI TV or monitor for applications where knowledge sharing is critical.



Features:



  • Sony Pregius global shutter sensor technology
  • Color or monochrome IMX252 Global Shutter CMOS sensor with 1/1.8” optical format providing a resolution of 2064 x 1544 using 3.45 x 3.45μm pixels&nbsp
  • Fast frame rates at ~120 fps at full resolution in 8-bit
  • Dual output to USB 3 and HDMI compatible monitor
  • Intuitive on-camera buttons for power, white balance and image capture
  • Selectable 8 or 12-bit pixel data
  • High-speed USB 3.1 Gen 1 interface for fastest image delivery and simplified connectivity. USB 2.0 supported.
  • Software compatible with Windows 10, Windows 8.1, Windows 7, MAC OS X 10.13, 32 and 64-bit operating systems
  • Support for third-party capture and analysis applications: MetaMorph and MicroManage
  •


    Applications:



  • Microscopy
