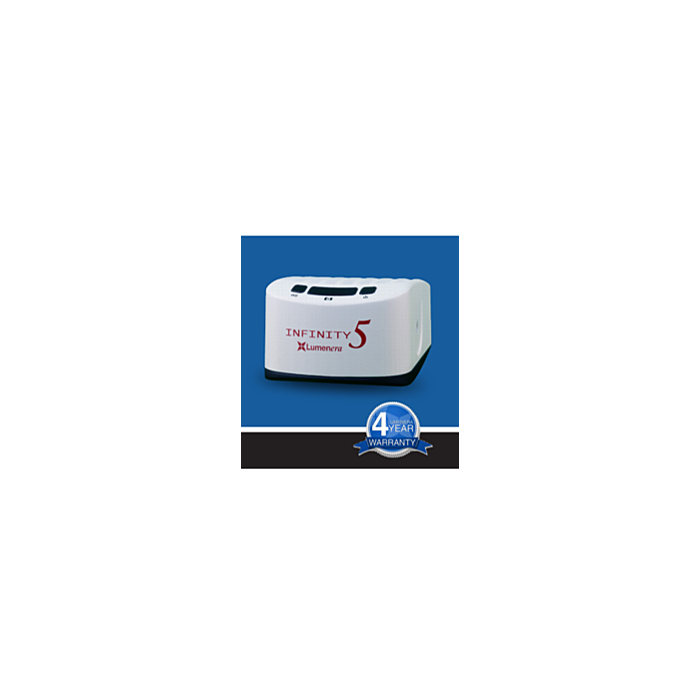

Lumenera INFINITY5-3 3.2 Megapixel Global Shutter CMOS Microscope Camera
Lumenera’s INFINITY5-3 is a high quality 3 megapixel microscopy camera that provides high speeds at high resolution. The INFINITY5-3 is based on the Sony® Pregius™ global shutter CMOS sensor that rivals sCMOS technology. With fast focusing at high frame rates of up to 120 frames per second, the INFINITY5-3 performs in a wide range of applications.
SKU
Lumenera INFINITY5 -3 3.2 Megapixel Microscope Camera
The INFINITY5-3’s 1/1.8 inch sensor format accommodates a 2064 x 1544 resolution with 3.45 micron pixels. The HDMI output allows the INFINITY5-3 to connect to both a computer and HDMI TV or monitor for applications where knowledge sharing is critical.
Features:
Applications:
| Image Sensor | SONY IMX252 CMOS color or monochrome |
| Optical Format | 1 / 1.8” |
| Image Size | Diagonal 8.9 mm |
| Pixel Size | 3.45 x 3.45 µm |
| Resolution | 2064 x 1544 pixels |
| Max Frame Rate | 1080P60 (~120 fps at full resolution) in 8-bit |
| Bit Depth | 8 or 12-bit |
| Binning Modes | 2 x 2 for mono |
| Exposure Control | Manual and automatic control |
| Exposure Range | 38µs to 59.5m (snapshot); 14µs to 11.9s (video) |
| Gain Control | Manual and automatic control |
| Gain Range | ~1 to 16 x |
| White Balance | Manual and automatic control |
| Trigger Modes | Hardware and software triggerable |
| Sensitivity | Mono: 4.8 DN/(nJ/cm2), Color: 4.4 DN/(nJ/cm2) (Global and channel gains at unity) |
| Dynamic Range | ~73 dB |
