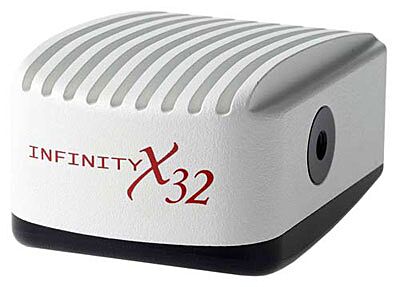

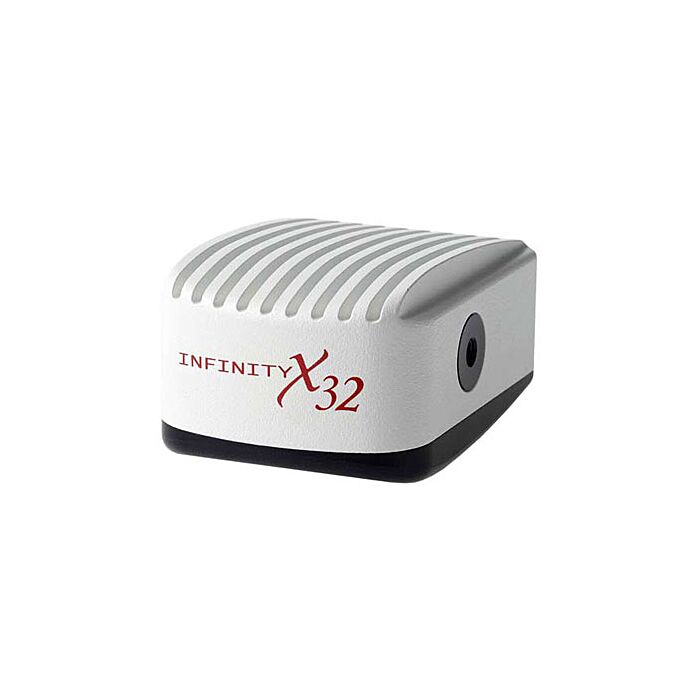

Lumenera INFINITY X-32M USB Camera

6484 pixels x 4864p (32MP), 1/1.8" PS CCD, 12 fps, USB 2.0 Microscopy Camera. Available Versions: Color- INFINITYX-32C Monochrome- INFINITYX-32M
SKU
Lumenera INFINITY X-32M

The INFINITYX-32M offers incredible flexibility in capturing images at 2, 8, 16 and 32 megapixel resolution. Using the patented DeltaVu™ technology, each CCD pixel captures full chromatic information, resulting in increased color resolution with no degradation. The INFINITYX-32 is the fist pixel shifting camera to utilize the highly sensitive SONY ICX274 sensor. The relatively low cost of the INFINITYX-32M makes it an affordable tool for clinical, life and material sciences where megapixel resolution, color accuracy, and light sensitivity are essential.

Features

  • 32 megapixel resolution is achieved through shifting a monochrome sensor with a 1616X1216 pixel array
  • Users will have the flexibility of choosing between 2, 8, 16 and 32 megapixel resolution on capture, taking full advantage of their microscope optics
  • Highly sensitive, low noise CCD with remarkable color quality for the most demanding applications
  • Full color sub-windowing allows for rapid focus and scanning of samples: 12 fps at full 1616X1216 resolution, 25 fps at smaller regions of interest
  • 8 / 12-bit selectable output format
  • The RGB data captured through each pixel contains 36-bits of color image information resulting in 4096 intensity values per color
  • Camera control through INFINITY CAPTURE, an intuitive user interface, resulting in rapid image capture, archiving and documentation for high throughput applications
  • INFINITY ANALYZE software for advanced camera control, image processing, measurement, annotation and archiving
  • Easy and flexible installation on your PC through a standard, high-speed USB 2.0 interface
  • Recommended Applications

  • Brightfield
  • Histology
  • Pathology
  • Cytology
  • Geology
  • Life Science
  • Image Sensor 1/1.8" Interline Sony ICX274 2.0 MP mono, progressive scan, CCD
    Pixel Size 4.4µm x 4.4µm
    Effective Pixels 1616 x 1216 pixels
    Dark Current 12 e-
    Camera Specifications
    Frame Rate 12 fps at 1616 x 1216, 25 fps at 640 x 480
    Bit Depth 8 and 12-bit, uncompressed
    Exposure Control Manual and automatic control
    Gain Control Programmable
    Gain Range 1 to 10 x
    White Balance Automatic and manual control
    Camera Characteristics
    Mass 300g
    Dynamic Range 66dB
    Mechanical Specifications
    Lens Mount Adjustable C-Mount lens adapter
    Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
    Operating Temperature 0° C to +50° C
    Operating Humidity 5%-95%, Non-condensing
    Camera Software
    Operating Systems Windows 2000, XP, Vista
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power, or external 5VDC - 2.5A
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 60 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 2000, XP, and Vista
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 20 MB hard drive free space
    • Windows XP or 2000
    Included in the Box
    Infinity X-32 32 MP Digital Camera for USB 2.0
    CD-ROM CD-ROM with INFINITY user application software, TWAIN
    driver and documentation
    Cables USB 2.0 Cable
    Power International Power Supply
    Ordering Information
    INFINITY X-32M Monochrome Camera
    Lu8101 Power Supply with international adaptors (included)
