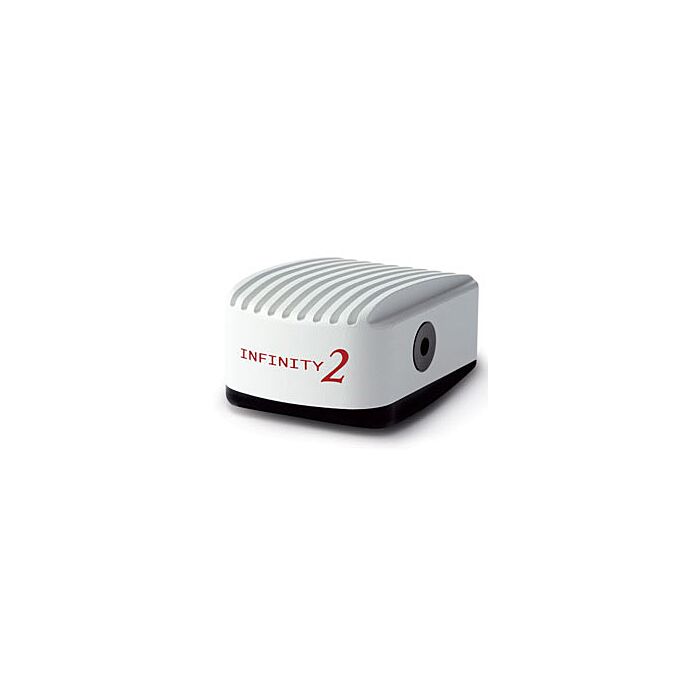

  • Lumenera INFINITY 2-5M | USB Camera Image #1

Lumenera INFINITY 2-5M

Quick Overview

5 MP CCD Monochrome Camera

Lumenera’s INFINITY2-5C digital CCD USB 2.0 camera offers excellent sensitivity, high resolution and a global electronic shutter. This is an ideal camera for brightfield, darkfield, and DIC imaging applications where higher resolution archiving and a wide dynamic range are routinely required. With 2448 X 2048 resolution and onboard processing, the INFINITY2-5C delivers outstanding image quality for a wide variety of scientific applications.


  • 2/3” format progressive scan 5.0 megapixel CCD sensor
  • 8 or 14-bit pixel data modes
  • Software compatible with Windows 2K, Windows XP, Windows Vista, Windows 7, Mac OSX, 32 and 64-bit
  • Includes TWAIN and DirectX/Direct Show support
  • Optional GPI/O for control of peripherals and synchronization

  • Applications:

  • Brightfield
  • Darkfield
  • Live Cell Imaging
  • Histology
  • Pathology
  • Cytology
  • Defect Analysis
  • Semiconductor Inspection
  • Metrology
  • Gel Documentation
  • Quantitative Analysis
  • Specifications
    Image Sensor Sony Super HAD ICX655 5.0 MP, CCD, color/mono, progressive scan
    Optical Format 2/3"
    Active Area 8.7 x 7.10 mm
    Pixel Size 3.45µm x 3.45µm
    Resolution 2448 x 2048 pixels
    Region of Interest Control Any multiple of 8 x 8 pixels, 16 x 16 pixels minimum
    Camera Specifications
    Frame Rate 9 fps (burst), 8.5 fps (sustained) at full resolution, 23 fps at 640 x 480 (with ROI)
    Bit Depth 8 or 14-bit
    Binning / Subsampling Modes 2 x 2, 4 x 4
    Exposure Control Manual and automatic control
    Exposure Range 161 μs to 500 ms (video), 161 μs - 71 min (snapshot)
    Gain Control Manual and automatic control
    Gain Range 1 to 25.6 x
    White Balance Automatic and manual control
    Camera Characteristics
    Sensitivity 3.5 DN/(nJ/cm2) [at 8-bit, 1 x gains]
    Dynamic Range 58dB
    Full Well Capacity 7950 e-
    Quantum Efficiency 42% (green peak), 52% (mono peak)
    Read Noise 10 e-
    Dark Current Noise <1e -/s at 22° C
    Mechanical Specifications
    Data Interface USB 2.0
    Lens Mount Adjustable C-Mount standard
    Dimensions 2.25 x 3.85 x 1.56 inches
    Mass 330g
    Operating Temperature 0° C to +50° C
    Storage Temperature -30° C to +70° C
    Operating Humidity 5%-95%, Non-condensing
    Shock/Vibration 50 g shock, 5 g (2 to 200 Hz) vibration
    Camera Software
    Operating Systems Windows XP, Vista, 7, Mac OSX, 32 and 64-bit
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power (external 5VDC - 500mA)
    Emissions Compliance FCC Class B, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 500 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 7
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 200 MB hard drive free space
    • USB 2.0 Port
    • Windows XP
    Included in the Box
    Infinity 2-5 5 MP Digital Camera for USB 2.0
    LuINFSW-DVD DVD with INFINITY user application software, TWAIN
    driver and documentation
    Lu802 2 m USB 2.0 cable
    Ordering Information
    Infinity 2-5C 5 MP CCD Color Camera
    Infinity 2-5M 5 MP CCD Monochrome Camera
    Infinity Analyze Module Infinity Analyze Advanced Features Module (Multi-Focus Composition and Spherical Aberration Correction Features)
    LuSDKSW Software Developer's Kit (Web Download)
    LuSDKSW-DVD Software Developer’s Kit (DVD)
    La20515 5VDC, 2.5 A, 12.5 W Power Supply (Optional)
