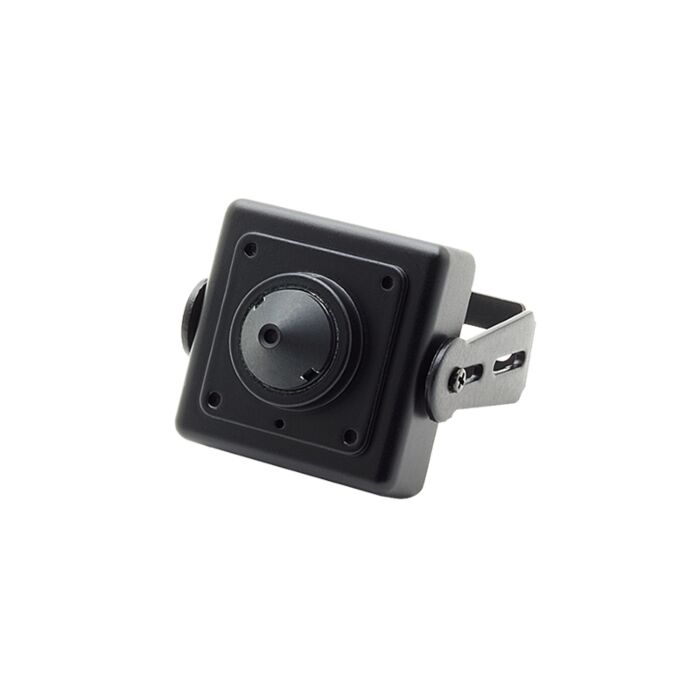

KT&C KPC-HD30MP4 (KPCHD30MP4) HD Miniature Square Camera

1944 x 1092 Total Pixels, 1/3” 2.1 Megapixel Color CMOS sensor, 3D DNR.
SKU
KPC-HD30MP4

For discreet surveillance, make sure you buy the KPC-HD30MP4 Megapixel Over Coax CCTV. Brought to the market by leading security equipment manufacturer KT&C, the covert camera comes with a unique 1.3 MP super-cone pinhole lens to avoid any chances of detection.

Features:

  • 1/3" Panasonic 2.4 Mega Pixel CMOS
  • 1080P 30fps (25fps) / 720P 60fps (50fps)
  • Illumination of 0.1 Lux
  • WDR, 3-DNR, BLC
  • Super Compact Size Housing 30mm x 30mm
  • Privacy Masking
  • Digital Day Night
  • HD-SDI
  • Sens Up
  • Effective Pixels 1944(H) X 1213(V)
  • 3D DNR

  • Applications:
  • Security
  • Surveillance/CCTV
  • Meetings
  • Industrial
  • Image Sensor 1/3” 2.1 Megapixel Color CMOS sensor
    Total Pixels 1944 x 1092
    Effective Pixels 5.28 mm x 2.97 mm (16:9 aspect ratio; 6.06 mm diagonal)
    Sensitivity 0.1lux/F=1.8; 0.2lux/F=2.5. Use of DSS can improve practical light sensitivity by 4X or more; ; use of DSS values greater than 4X should only be used after careful consideration of application conditions
    S/N Ratio More than 52dB
    Video Format Main Output HD-SDI
    Resolution Main Output Field select 1080p or 720p
    Video Mode Main Output Field select 1080p 30/25; 720p 60/50
    Main Output Connector BNC-F
    Video Format Service Video Output NTSC/PAL selectable
    Service Video Output Connector BNC-F
    Electronic Shutter Auto/Manual selectable 1/30(20); 1/60(50); 1/120(100); 1/250; 1/700; 1/1.1K; 1/1.6K; 1/2.5K; 1/5K; 1/7K; 1/10K; 1/30K
    Lens Choices (megapixel board type) Super-cone Pinhole f=4.3mm/F2.0 (1.3M)
    Day/Night Control Digital D&N (Auto/Color/B&W)
    Wide Dynamic Range / Back Light Compensation Off/BLC/WDR [WDR adjustable for level; BLC adjustable for area] (WDR option employs “Double Shutter” Wide Dynamic Range Compensation)
    Digital Wide Dynamic Range
    Adaptive Contrast Enhancement (ACE)
    Auto Gain Control Yes (12~60 dB)
    Auto White Balance Auto/Auto Ext/Push Lock/Manual
    DNR 3D DNR; Off/Low/Mid/High selectable
    OSD Menu Yes (controlled from 3-axis joystick control)
    OSD Language English, Russian, Spanish, German, French, Portuguese, Chinese
    Image Flip Off/H Flip/V Flip/HV Flip (rotate 180°)
    Privacy Zone Up to 15 zones, with adjustable color and transparency
    HSBLC Adjustable for level, mode (day/night/all), and mask color
    Digital Zoom Up to 20X
    Defog Image clarity improvement in diffued light environments low/middle/high
    Power Sources & Consumption 12V DC: 120mA max.
    Dimensions 1.18 inch x 1.18 inch x 1.11 inch (30 mm x 30 mm x 28.2 mm)
    Weight 1.23 oz. (35 g)
    Operating Temperature -10 °C ~ 50 °C ; 14 °F ~ 122 °F
    Storage Temperature -20 °C ~ 60 °C ; -4 °F ~ 140 °F
    Humidity 20% ~ 80%, non condensing
    Mounting Provision Tilt/Swivel bracket provided
