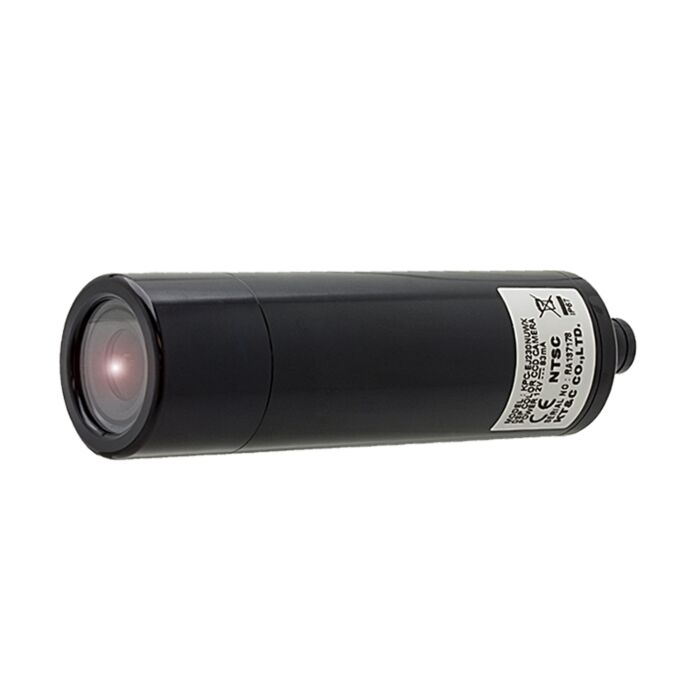

KT&C KPC-EJ230NUWX (KPCEJ230NUWX) 750TVL Miniature Bullet Camera
1020 x 508 Total Pixels, 1/3” 960H SONY EXview HAD CCD II, Fixed Board Lens - 2.97, 3.6, 4.3, 6.0, 8.0, 12.0 mm.
SKU
KPC-EJ230NUWX
The KT&C KPC-EJ230NUWX features a 1/3”, 960H Interline CCD and 700TVL Horizontal Resolution. It is fully water-proof (IP67) and has a really fast shutter speed (1/60 ~ 1/10,000 sec). It also features 2D Digital Noise Reduction (2D DNR), Adaptive Tone-curve Reproduction (Digital WDR), Back Light Compensation (BLC), Highlight Compensation (HLC) and 4-Zone (Privacy Masking / Motion Detection). It even has multiple image options like, Mirror /Brightness / Contrast / Sharpness / HUE / Gain.
Features:
- 1/3” 960H SONY EXview HAD CCD II
- 750TVL Horizontal Resolution
- f = 2.97, 3.6, 4.3, 6.0, 8.0, 12.0 mm
- Fixed Board Lens
- Digital Day & Night
- Size: Φ0.9 x 3 inch(Φ23 x 75.2 mm)
- Min. Illumination of 0.1 Lux
- Extreme Operating temperature down to -40 degrees
- Ultra compact size of 0.90" Dimension
- 2D DNR / BLC / HLC / ATR / OSD
- IP67 (Weather Proof)
- DC 12V Power
Applications:
- Inspection
- Security
- Surveillance/CCTV
- Meetings
- Industrial
| Image Sensor | 1/3” 960H SONY EXview HAD CCD II |
| Horizontal Resolution | 750 TV Lines |
| Scanning System | 2:1 Interlace |
| Scanning Frequency | 15.734 KHz X 59.94 Hz |
| Total Pixels | 1020 x 508 |
| Effective Pixels | 976 x 494 |
| Synchronization | Internal |
| Lens | 2.97, 3.6, 4.3, 6.0, 8.0, 12.0 mm |
| Lens Type | Fixed Board Lens |
| S/N | More than 50dB (AGC: Off) |
| Gamma | r = 0.45 |
| Min. Illumination | 0.1 Lux |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Day & Night | Digital Day & Night |
| Day & Night Function | Auto, Color, B/W |
| IP Rating | IP67 (Weather Proof) |
| Video Output Level | 1 Vp-p Composite (75 Ω) |
| On-Screen Display (OSD) | Built-in (Joystick) |
| BLC | Off, BLC, HLC |
| DNR | 2D DNR |
| ATR | On / Off (Level Adjustable) |
| White Balance | ATW, Push, User1, User2, Anti CR, Manual, Push-lock |
| Privacy Masking | 4 Zones |
| Mirror | On / Off |
| Motion Detection | 4 Zones |
| Other Function | Brightness, Contrast, Sharpness, HUE, Gain |
| Language Option | English, Japanese, German, French, Russian, Portuguese, Spanish |
| Operating Temperature | -40 °F ~ 122 °F (-40 °C ~ 50 °C) |
| Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Power Supply | DC 12V (±10%), Max. 83mA |
| Dimensions | Φ0.9 x 3 inch(Φ23 x 75.2 mm) |
| Weight | Approximately 0.55 lbs (250 g) |
| Certifications | FCC / CE / UL / RoHS |
