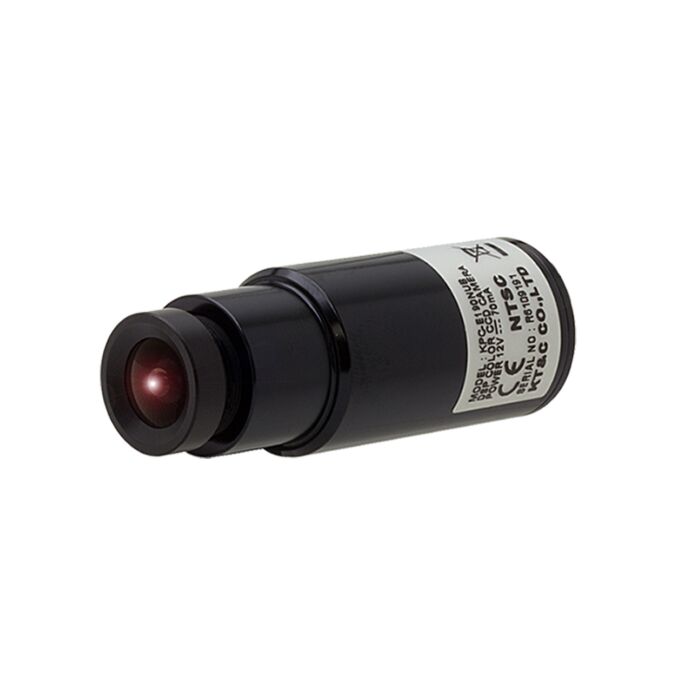

KT&C KPC-E190NU 750TVL Miniature Bullet Camera
1020 x 508 Total Pixels (H x V), 1/3” 960H SONY EXview HAD CCD II.
SKU
KPC-E190NU
The KT&C KPC-E190NU has a lot of resolution packed in our outdoor mini bullet. See the clarity of more than 700TV lines of resolution, ideal for discrete locations, transit industry, financial institutions and practical for indoor or outdoor environments.
Features:
- 700TVL Horizontal Resolution
- Fast Shutter Speed (1/60 ~ 1/100,000 sec)
- 2D Digital Noise Reduction (2D DNR)
- 0.0001 Lux / Faceplate
- Adaptive Tone-curve Reproduction (Digital WDR)
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 4-Zone (Privacy Masking / Motion Detection)
- Mirror / Brightness / Contrast / Sharpness / Hue / Gain
- Outstanding durability of IP67 (Waterproof)
- DC 12V
Application:
- Security
- Surveillance/CCTV
- Meetings
- Industrial
| Signal System | NTSC |
| Image Sensor | 1/3″ 960H SONY ExView HAD CCD II |
| Scanning System | 2:1 Interlace |
| Scanning Frequency (H) x (V) | 15.734 KHz X 59.74 Hz |
| Total Pixels | 1020(H) x 494(V) |
| Effective Pixels | 976(H) x 494(V) |
| Synchronization | Internal |
| Horizontal Resolution | 700 TV Lines |
| Lens | Fixed Board Lens 2.97mm, 3.6mm, 4.3mm, 6.0mm, 8.0mm, 16mm |
| S/N | More than 48dB (AGC Off) |
| Min. Illumination | 0.0001 Lux / Faceplate |
| IP Rating | IP 67 |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Video Output Level | 1.0 Vp-p Composite (75Ω) |
| Gamma | y = 0.45 |
| Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Storage Temperature | -20 °C ~ 60 °C (-4 °F ~ 140 °F) |
| Humidity | Less than 80% |
| Power Supply | DC 12V (Max 110mA) |
