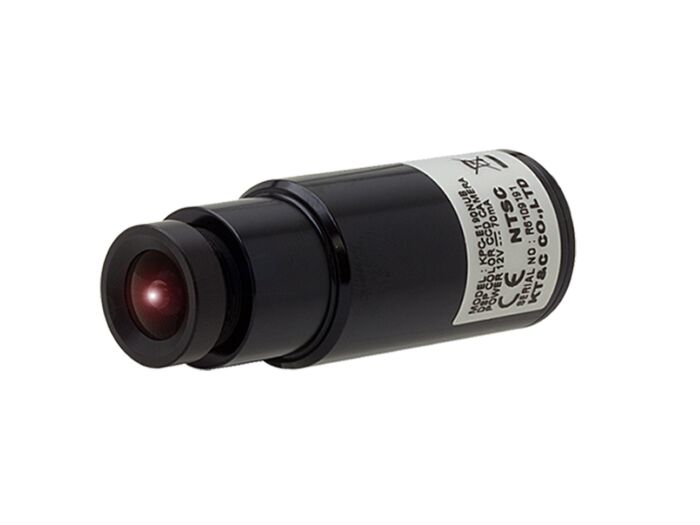

KT&C KPC-E190NU 750TVL Miniature Bullet Camera, 1/3” SONY EXview HAD CCD II, Fixed Board Lens Options, IP67, Ø23 × 85mm (Discontinued)
*Product is Discontinued, Call For Replacement Options
Compact outdoor mini bullet camera with 1/3” SONY EXview HAD CCD II, 750TVL resolution, fixed board lens (2.97–16mm), IP67 waterproof housing, digital WDR, BLC/HLC, 2D DNR, and 4-zone privacy/motion detection. Ideal for industrial, transit, and security applications.
The KT&C KPC-E190NU Miniature Bullet Camera combines compact design with superior video performance. Featuring a 1/3” SONY EXview HAD CCD II sensor and 750TVL horizontal resolution, it delivers crisp and clear imaging for both indoor and outdoor applications. Fixed board lens options ranging from 2.97mm to 16mm provide versatile field-of-view choices to suit your installation needs.
Built for durability, the KPC-E190NU includes IP67-rated waterproof housing, digital WDR, 2D DNR, BLC/HLC, and 4-zone privacy/motion detection, ensuring optimal performance in challenging lighting and environmental conditions. Its fast shutter speed (1/60 ~ 1/100,000 sec) captures fast-moving objects with precision. Compact dimensions of Ø23 × 85mm and simple DC 12V operation make it a flexible and reliable solution for industrial, transit, financial, and general security surveillance applications.
Features:
- 700TVL Horizontal Resolution
- Fast Shutter Speed (1/60 ~ 1/100,000 sec)
- 2D Digital Noise Reduction (2D DNR)
- 0.0001 Lux / Faceplate
- Adaptive Tone-curve Reproduction (Digital WDR)
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 4-Zone (Privacy Masking / Motion Detection)
- Mirror / Brightness / Contrast / Sharpness / Hue / Gain
- Outstanding durability of IP67 (Waterproof)
- DC 12V
Application:
- Security
- Surveillance/CCTV
- Meetings
- Industrial
| Signal System | NTSC |
| Image Sensor | 1/3″ 960H SONY ExView HAD CCD II |
| Scanning System | 2:1 Interlace |
| Scanning Frequency (H) x (V) | 15.734 KHz X 59.74 Hz |
| Total Pixels | 1020(H) x 494(V) |
| Effective Pixels | 976(H) x 494(V) |
| Synchronization | Internal |
| Horizontal Resolution | 700 TV Lines |
| Lens | Fixed Board Lens 2.97mm, 3.6mm, 4.3mm, 6.0mm, 8.0mm, 16mm |
| S/N | More than 48dB (AGC Off) |
| Min. Illumination | 0.0001 Lux / Faceplate |
| IP Rating | IP 67 |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Video Output Level | 1.0 Vp-p Composite (75Ω) |
| Gamma | y = 0.45 |
| Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Storage Temperature | -20 °C ~ 60 °C (-4 °F ~ 140 °F) |
| Humidity | Less than 80% |
| Power Supply | DC 12V (Max 110mA) |
