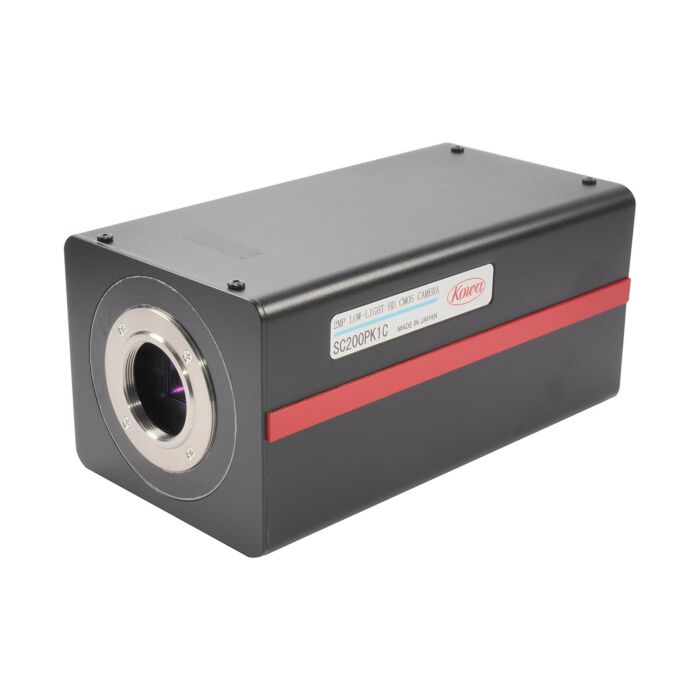

Kowa SC200PK1C 2/3” CMOS 2MP Color 0.005 Lux Low Light Camera
The SC200PK1C is able to deliver a color image even in very dark surroundings and is thus ideal for high-end surveillance solutions.
SKU
SC200PK1C
The SC200PK1C is able to deliver a color image even in very dark surroundings and is thus ideal for high-end surveillance solutions.
The 2/3 "CMOS 2MP (1080p / 30f - HDTV) color camera delivers even at 0005 Lux. This is possible through a new sensor, similar to the highly sensitive EMCCD sensors. The camera has a 16x image storage for sensitivity enhancement and 3D-noise reduction.
A day/night function, enables the camera to be ultra-high sensitive for observation under IR illumination.
Kowa's new aspheric, high-speed JS5MA lens series (F0.8 / F0.85) is designed to fit perfectly with this low-light camera. Available focal lengths include 25mm, 35mm and 60mm.
Features:
Applications:
| Imaging Device | 2/3" CMOS |
| Valid Pixels | Approx. 2M Pixels |
| Pixel Size | 5.0µm |
| Scanning Method | Progressive |
| Minimum Illumination | 0.005Lux (F1.4) 30 fps |
| S/N Ratio | More than 50dB |
| Synchronization | Internal/External |
| Gain | 0-72dB |
| Shutter Type | Rolling Shutter |
| Lens Mount | CS |
| Iris Control | DC |
| Day & Night | IR Cut Filter ON/OFF |
| Video Output | HD : HD-SDI / SD : NTSC, PAL |
| Output Format | 1920 x 1080, 1280 x 720 29.97 30 60 25 50 |
| Remote Control | RS-485 |
| Input Voltage | DC12V |
| Power Consumption | Lower than 7W |
| Size (mm) | 78 (W) x 66 (H) x 146 (D) |
| Weight | 600g |
