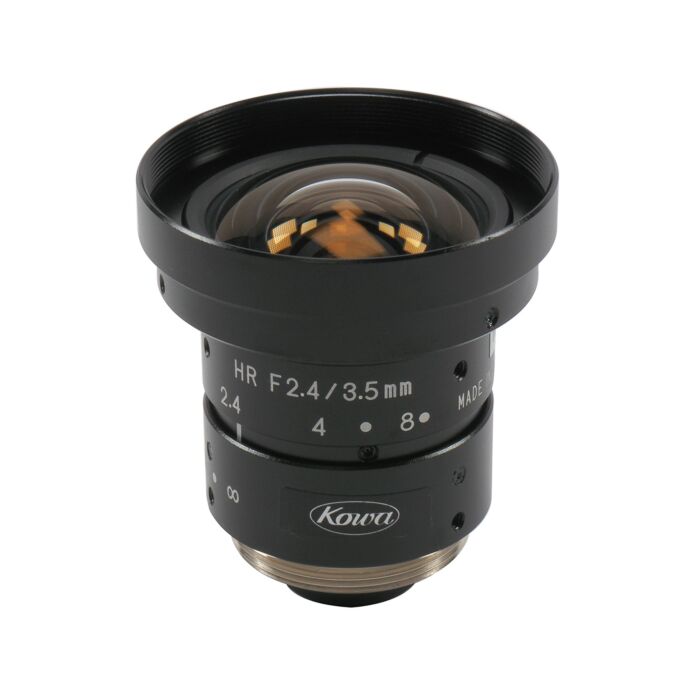

Kowa LM3NCM 1/1.8" 3.5mm Megapixel Lens

1/1.8", 3.5mm, Megapixel Lens.
SKU
Kowa LM3NCM

The Wide Megapixel lens series offers extremely high resolution and utilizes Kowa's floating mechanism design. The wide angle 3.5mm and 5mm megapixel models will pave the way for new possibilities in machine vision systems.

Features:

  • Low Distortion
  • Super Wide Angle Optical Design
  • Resistant to Vibration and Shock
  • Extra Low Distortion
  • Ideal for Megapixel Cameras
  • Clear Resolution at Center and Corner
  • High Transmission
  • Focal Length (mm) 3.5
    Image Size (mm) 7.2×5.4 (Φ9)
    Iris Range (F-stop) F2.4 ~ F14
    Focusing Range (m) 0.1 ~ ∞
    Iris Control Manual
    Focus Control Manual
    Shooting Range at M.O.D. (mm) 226.3(H) x 171.4(V)
    Angle of View 2/3" (°) -
    Angle of View 1/1.8" (°) 89.0 x 73.8
    Angle of View 1/2" (°) 82.4 x 66.9
    Angle of View 1/3" (°) 66.9 x 52.7
    Resolution (Center, Corner) 120lp/mm, 100lp/mm
    TV Distortion (%) 0.4
    Back Focus in Air (mm) 9.7
    Mount C-Mount
    Filter Thread (mm) M40.5×P0.5
    Size (mm) Φ42×38.2
    Weight (g) 85
    Temperature Range -10°C - +50°C
