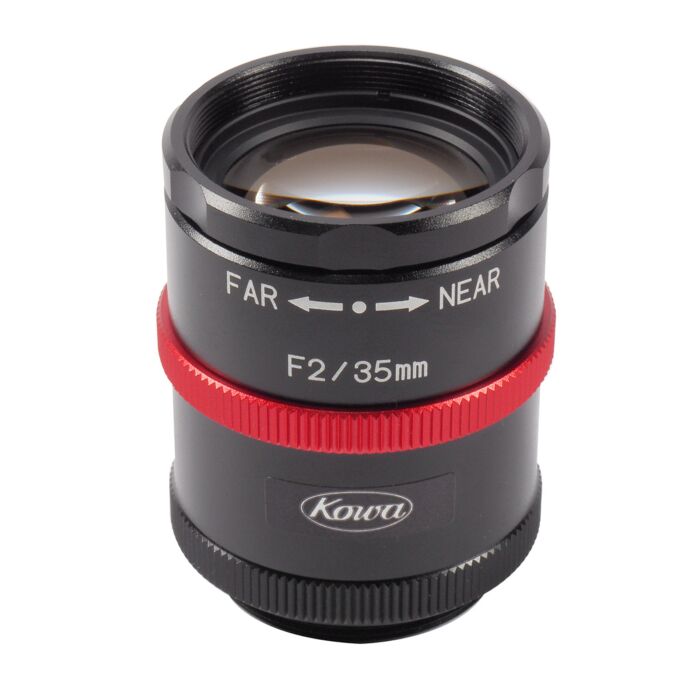

Kowa LM35JCM-V | 2/3" Ruggedized 35mm 2MP C-Mount Lens
Explore the Versatile Kowa LM35JCM-V Lens for Industrial and Machine Vision Applications
Aegis Electronic Group Inc. offers the Kowa LM35JCM-V, a ruggedized 35mm 2MP C-mount lens designed to meet the demanding requirements of industrial and machine vision applications. Built to withstand environments with strong vibrations and shocks, this lens is ideal for a wide range of uses, from factory automation to quality control and beyond.
The Kowa LM35JCM-V is compatible with sensors that have a pixel size of 4.5μm or more, including OnSemi Python500, e2v EV76C570, and Aptina MT9M131 sensors. It features manual iris control with an iris range from F2 to F16, and its fixed focal length ensures consistent image quality. The lens operates within a wavelength range of 380nm to 780nm, making it suitable for various lighting conditions.
With a resolution of 120 lp/mm at the center and 100 lp/mm at the corners, this lens delivers sharp, high-quality images. Its compact size (Ø33 x 37.8 mm) and lightweight design (73g) make it easy to integrate into existing systems. The Kowa LM35JCM-V is perfect for applications requiring precise imaging and durability in harsh environments.
Features:
- 35mm focal length
- 2MP resolution
- Rugged design for strong vibrations and shocks
- Compatible with OnSemi Python500, e2v EV76C570, and Aptina MT9M131 sensors
- Manual iris control (F2 to F16)
- Fixed focal length
- VIS wavelength range (380nm - 780nm)
- High-resolution (120 lp/mm center, 100 lp/mm corners)
- Compact size (Ø33 x 37.8 mm)
- Lightweight (73g)
Applications:
- Factory automation
- Quality control
- Robotics
- Assembly line monitoring
- Inspection systems
- Surveillance in harsh environments
- Precision measurement systems
| Focal Length (mm) | 35 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F2 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 47,9 |
| Shooting range at MOD, vertical (mm) | 35,8 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,2 |
| Back Focus in Air (mm) | 20,1 |
| Filter Size (mm) | M27 x P0,5 |
| Size (mm) | Ø54 X 56,6 |
| Weight | 215 |
| Temperature Range | -10°C - +50°C |
| Series | HC |
| Application | Broadcast, ITS/Traffic Control, Machine Vision |
