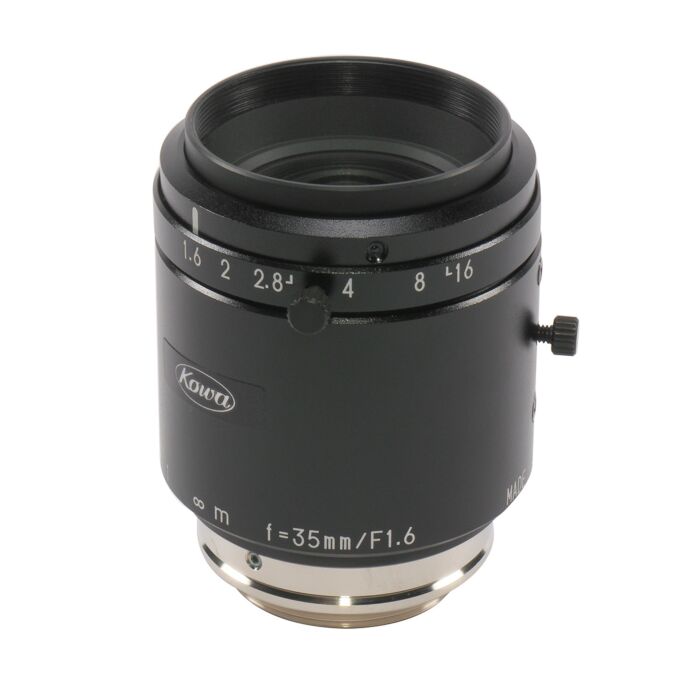

Kowa LM35JC5M2 2/3" 35mm F1.6 Manual Iris C-Mount Lens
Kowa's JC5M2 lens series is perfect for high-end applications that require the use of 5 megapixel cameras.
SKU
LM35JC5M2
With a fast F-stop, locking screws, and a compact design, these lenses provide a good value between price and performance. The JC5M2 lenses are compact, lightweight, and have a fast F-stop of F1.4.
Features:
| Focal Length | 35mm |
| Focal Length Sort Order | 035 |
| Lens Type | Fixed Focal Length |
| Image Size | 2/3" (8.8 x 6.6 x 11mm) |
| Iris Range (F-Stop) | F1.6 - 16 |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 10.4 x 7.8 x 13.0° |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 11.7 x 8.8 x 14.6° |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 14.3 x 10.8 x 17.5° |
| TV Distortion |
0.03% |
| Minimum Object Focus Distance (1/2") (Hor. x Ver. x Dia.) |
30.6 x 23.0 x 38.3mm |
| Minimum Object Focus Distance (1/1.8") (Hor. x Ver. x Dia.) | 34.4 x 25.8 x 43.1mm |
| Minimum Object Focus Distance (2/3") (Hor. x Ver. x Dia.) | 42.1 x 31.6 x 52.7mm |
| Focusing Range | 0.18m |
| Flange Back | 17.526mm in air |
| Back Focus | 12.2mm in air |
| Filter Thread Size | M30.5x0.5 |
| Front/Rear Effective Diameter | Front Φ23.5mm / Rear Φ14.5mm |
| Mount | C-Mount |
| Exit Pupil Location | -39.2mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution: Center/Corner | Center 160lp/mm / Corner 125lp/mm |
| Weight | 120g |
