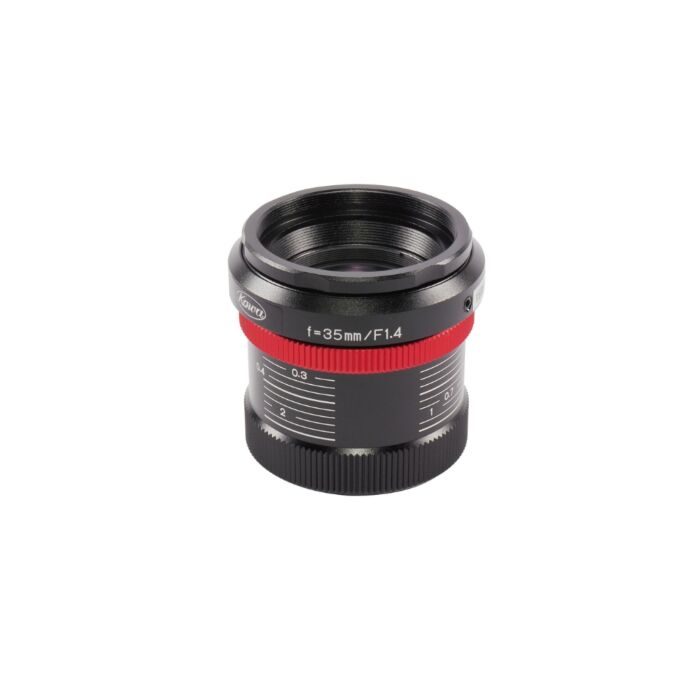

Kowa LM35HC-V | 1" Ruggedized 35mm 5MP C-Mount Lens
Enhance Your Machine Vision and Industrial Applications with Kowa LM35HC-V
Aegis Electronic Group Inc. proudly presents the Kowa LM35HC-V, a 1" ruggedized 35mm 5MP C-Mount lens designed for superior performance in demanding industrial and machine vision applications. This high-resolution lens is perfect for sensors with a pixel size of 5.0μm and is suitable for use with Sony IMX174, CMOSIS CMV4000, Sony IMX249 sensors, and many more.
The Kowa LM35HC-V lens is built to withstand environments with strong vibrations and shocks, making it an ideal choice for industrial settings. With a manual iris control and a range of F1.4 to F8, this fixed focal length lens ensures precise image capturing and exceptional clarity. The lens covers a wavelength range of 380nm to 780nm and features a robust build with a temperature range of -10°C to +50°C, ensuring reliable performance under various conditions.
This lens excels in applications such as Intelligent Transportation Systems (ITS), traffic control, and various machine vision tasks, providing unparalleled accuracy and durability. Whether you're in need of a lens for high-speed imaging or challenging environments, the Kowa LM35HC-V offers the reliability and quality you demand.
Features:
- 35mm fixed focal length
- 5MP resolution
- Compatible with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors
- Manual iris control (F1.4 to F8)
- Rugged design for shock and vibration resistance
- Covers 380nm to 780nm wavelength range
- Temperature range: -10°C to +50°C
- C-mount compatible
Applications:
- Intelligent Transportation Systems (ITS)
- Traffic control systems
- High-speed imaging
- Industrial automation
- Quality control and inspection
- Robotics
- Manufacturing processes
| Focal Length (mm) | 35 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F1.4 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,3 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 110.1 |
| Shooting range at MOD, vertical (mm) | 82 |
| Resolution (Center, Corner) | 120lp/mm,80lp/mm |
| Megapixel | 5 |
| TV Distortion (%) | -0,5 |
| Back Focus in Air (mm) | 16,8 |
| Filter Size (mm) | M35.5 x P0.5 |
| Size (mm) | Ø46 X 44 |
| Weight | 133 |
| Temperature Range | -10°C - +50°C |
| Series | HC-V |
| Application | ITS/Traffic Control, Machine Vision |
