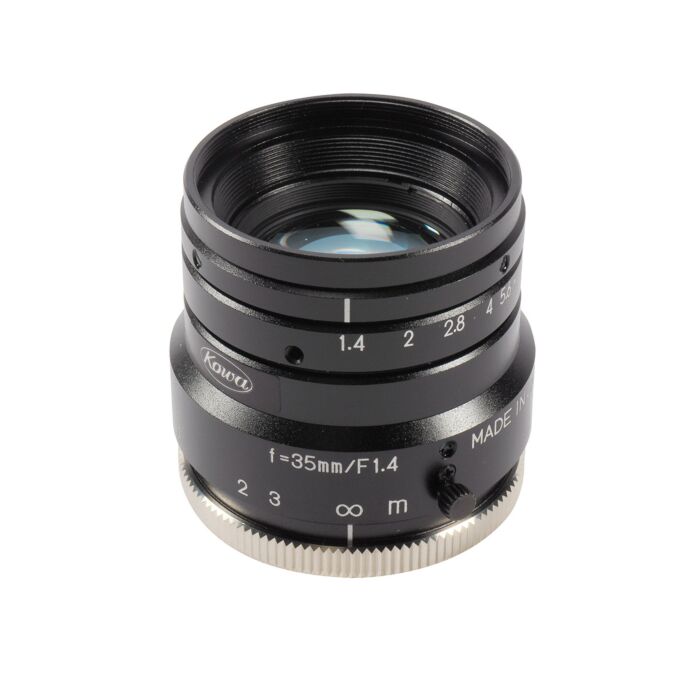

Kowa LM35HC-SW 1" 35mm Lens

1", 35mm, SWIR Lens.
SKU
LM35HC-SW

Kowa's new series is specially designed for near-infrared and short wavelength infrared (SWIR) applications. Incorporating Kowa's special coating technology, the 1 inch format HC-SW series will maintain high transmission from 800nm to 2.000nm.

Features:

  • Transmission 800nm to 2.000nm
  • Near Infrared and Short Wavelength infrared
  • Locking screws for iris and focus
  • Metal mount
  • Metal housing
  • Format Size 1"
    Focal Length 35 mm
    Iris Range F 1.4 -16
    Focusing range (m) 0.3 - ∞
    Control (Iris/Focus) Manual
    Shooting range at MOD (mm) 0
    Resolution (center, corner) 200lp/mm, 80lp/mm
    Distortion (TV) -1.0%
    Back focus in air (mm) 16.5
    Filter size (mm) M35.5 x P0.5
    Size (mm) 42 X 43
    Weight (g) 125g
    Temperature range (℃) -10℃ - +45℃
