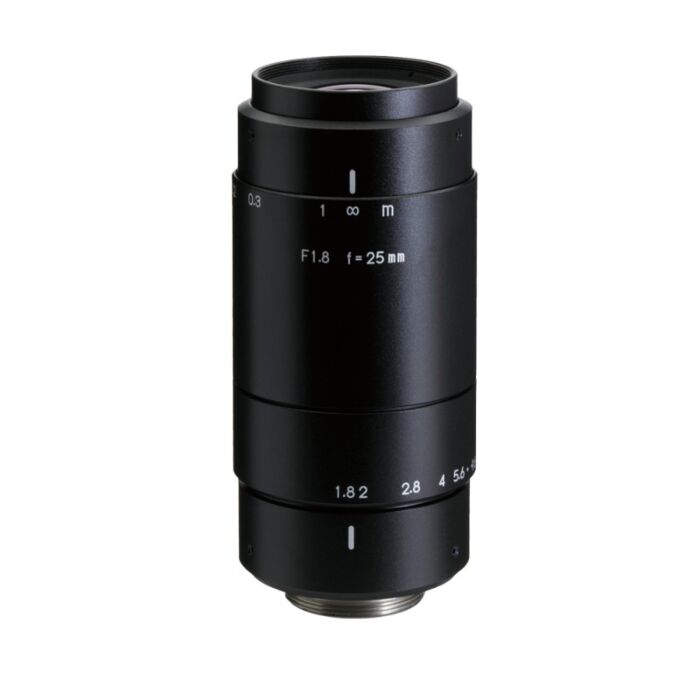

Kowa LM25SC 1" Format 25mm Megapixel Lens
1" Format, 25mm, Megapixel Lens.
SKU
LM25SC
Kowa's brand new 1" C-mount lenses are perfect for those in between the HC Series and XC Series producing high resolution images at 6MP plus. The SC Series feature aspherical XD, or extra low dispersion glass, in a metal body to deliver the most accurate images.
Features:
| Focal Length (mm) | 25mm |
| Image Size (mm) |
12.8×9.6 (Φ16) |
| Iris Range | F1.8~F16 |
| Focusing Range (m) |
.15~∞
|
| Control |
Iris: Manual
Focus: Manual |
| Shooting Range at M.O.D. (mm) |
86.1(H)×64.4(V)
|
| Angle of View (Degrees) |
1": 28.9x21.8
2/3": 20.1×15.2 1/1.8": 16.5×12.4 |
| Resolution (Center, Corner) |
160lp/mm, 120lp/mm
|
| TV Distortion (%) |
-0.34
|
| Back Focus in Air (mm) |
24.3
|
| Mount |
C-Mount
|
| Filter Thread (mm) |
M34×P0.5
|
| Size (mm) |
Φ43×89
|
| Weight (g) | 245 |
| Temperature Range | −10°C~+50°C |
