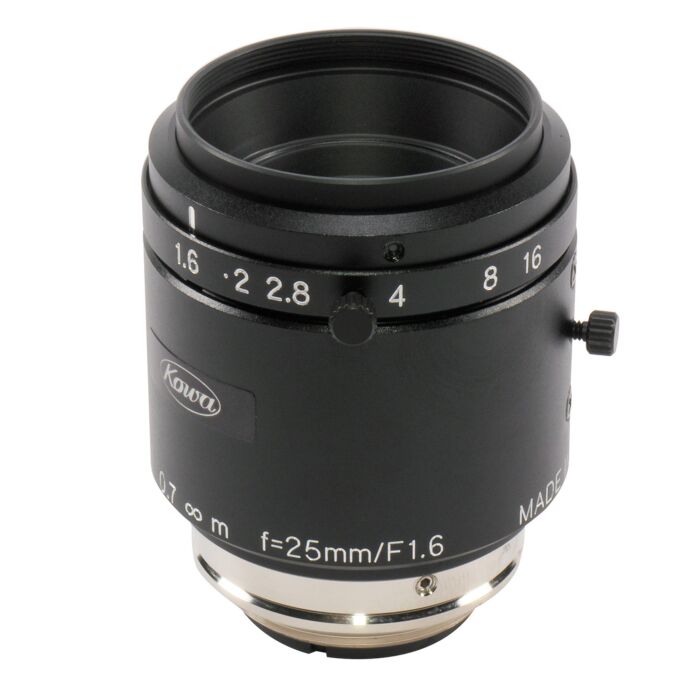

Kowa LM25JC5M2 2/3" 25mm F1.6 Manual Iris C-Mount Lens

Kowa's JC5M2 lens series is perfect for high-end applications that require the use of 5 megapixel cameras.
SKU
LM25JC5M2

With a fast F-stop, locking screws, and a compact design, these lenses provide a good value between price and performance. The JC5M2 lenses are compact, lightweight, and have a fast F-stop of F1.4.

Features:

  • Floating Mechanism Design - Kowa's floating mechanism design virtually eliminates optical abberations from close distance to infinity
  • Low Distortion - High precision aspherical lens greatly reduces distortion and produces a high definition picture
  • High Resolution - Creates crisp, clear images even at long distances
  • Lightweight and Compact Design - Capable of fitting numerous applications
  • Fast F-Stop of F1.4 - Able to create extremely shallow depth of field in low lighting situations
  • Focal Length 25mm
    Focal Length Sort Order 025
    Lens Type Fixed Focal Length
    Image Size 2/3" (8.8 x 6.6 x 11mm)
    Iris Range (F-Stop) F1.6 - 16
    Angle of View 1/2" (Hor. x Ver. x Dia.) 14.6 x 10.9 x 18.0°
    Angle of View 1/1.8" (Hor. x Ver. x Dia.) 16.4 x 12.3 x 20.4°
    Angle of View 2/3" (Hor. x Ver. x Dia.) 19.9 x 15.0 x 24.8°
    TV Distortion
    0.01%
    Minimum Object Focus Distance (1/2") (Hor. x Ver. x Dia.)
    25.5 x 19.1 x 31.9mm
    Minimum Object Focus Distance (1/1.8") (Hor. x Ver. x Dia.) 28.7 x 21.5 x 35.9mm
    Minimum Object Focus Distance (2/3") (Hor. x Ver. x Dia.) 35.1 x 26.3 x 43.9mm
    Focusing Range 0.1m
    Flange Back 17.526mm in air
    Back Focus 11.2mm in air
    Filter Thread Size M30.5x0.5
    Front/Rear Effective Diameter Front Φ20.0mm / Rear Φ13.8mm
    Mount C-Mount
    Exit Pupil Location -46.6mm
    Temperature Range -10°C ~ +50°C
    Storage Temperature Range -20°C ~ +60°C
    Resolution: Center/Corner Center 160lp/mm / Corner 100lp/mm
    Weight 115g
