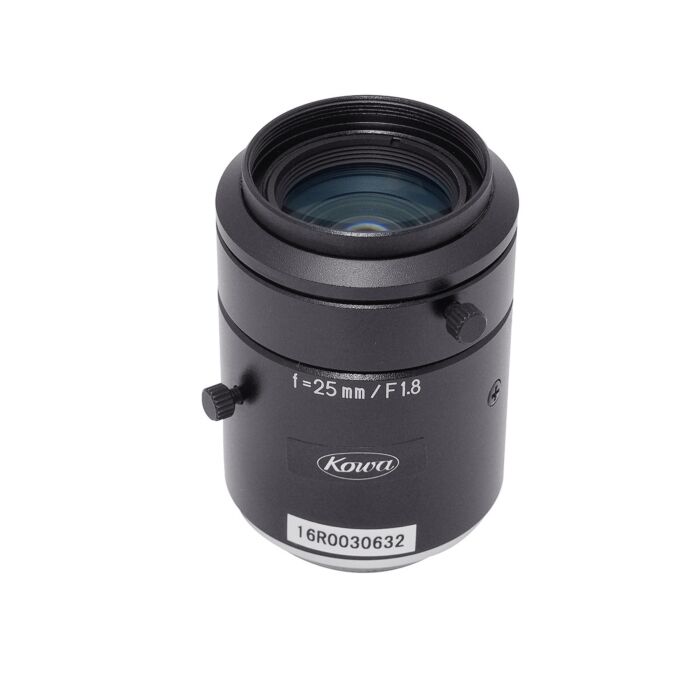

Kowa LM25JC10M 2/3" 25mm 10 Mega Pixel Lens

2/3", 25mm, Megapixel Lens.
SKU
LM25JC10M

Kowa's new line up of 2/3" Megapixel lenses especially designed for 10MP sensors. The complete range contains 7 different models with focal length starting at 5mm up to 50mm. The advanced optical design of the new 10MP lens series is supported by incorporating aspherical lens elements and the usage of special XD glass (eXtra low Dispersion). All lenses are made of at least 7 up to 9 lens elements in order to achieve the exceptional requirements on resolution and contrast.

Features:

  • Up to 10 Megapixel
  • 10 Elements in 9 Groups
  • Locking screws for iris and focus
  • Metal mount
  • Metal housing
  • Format Size 2/3"
    Focal Length 25 mm
    Iris Range F 1.8 - 16
    Focusing range (m) 0.1 - ∞
    Control (Iris/Focus) Manual
    Shooting range at MOD (mm) 36(H) x 27(V)
    Resolution (center, corner) 200lp/mm, 160lp/mm
    Distortion (TV) -0.09%
    Back focus in air (mm) 17.9
    Filter size (mm) M25.5 x P0.5
    Size (mm) 27 X 51.2
    Weight (g) 95g
    Temperature range (℃) -10℃ - +45℃
