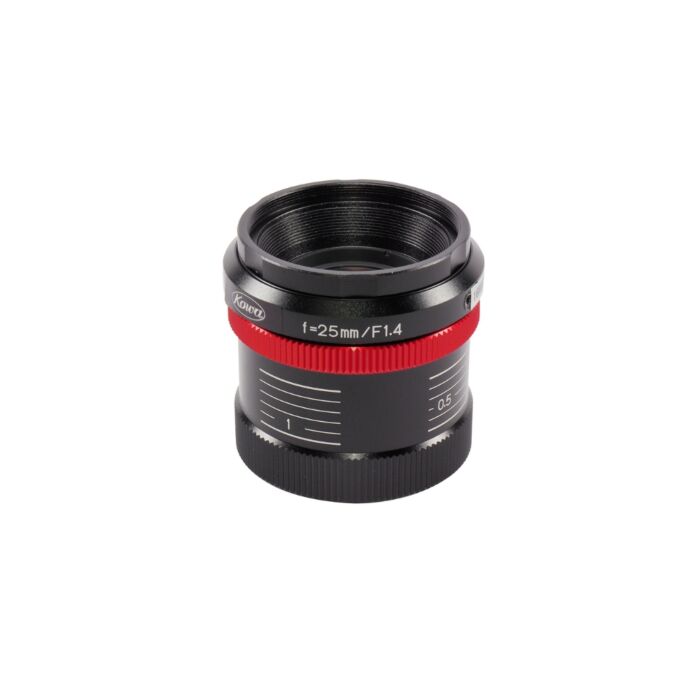

Kowa LM25HC-V (LM25HCV) 1" Format 25mm Anti-Vibration Megapixel Lens
1", 25mm, F1.4/F2.8/F4/F8, C-Mount, MP, Anti-Vibration
SKU
LM25HC-V
Kowa’s new HC-V series is made for use in high vibration and high shock environments. With a design based on Kowa’s standard 1 inch HC lenses this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two way reversible nut is utilized to tightly lock the focus adjustment ring in place. Interchangeable iris plates which can be glued are used to select the F-stop.
Features:
| Focal Length | f=25mm |
| F-Number | F=1 : 1.4, 2.8, 4, 8 |
| Picture Size | 9.6x12.8mm |
| Angle Of View | Ver. Angle - 22.0° Hor. Angle - 29.3° Dia. Angle - 36.6° |
| Distortion | -1.0% |
| Field Of View | Ver. Angle - 119.2 mm Hor. Angle - 160.7 mm Dia. Angle - 204.3 mm |
| Minimum Focus Distance | 0.3m |
| Flange Back | 17.526 mm in air |
| Back Focus | 16.5 mm in air |
| Filter Screw Size | M35.5x0.5 |
| Front/Rear Effective Dia. | Front Φ2105mm / Rear Φ19.4mm |
| Mount | C-Mount |
| Exit Pupil | -57.9mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution Center/Corner | Center 120lp/mm / Corner 100lp/mm |
| Weight | 104g |
