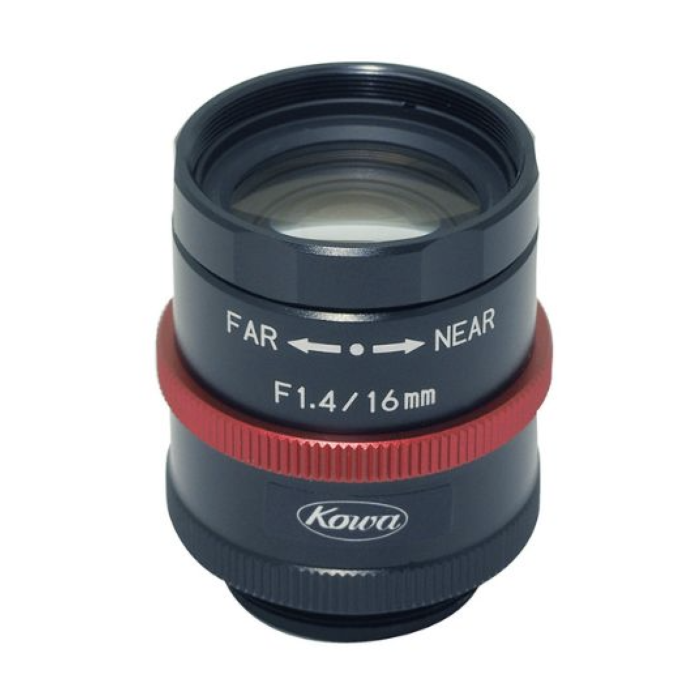

  • Kowa LM16JCM-V Image 1

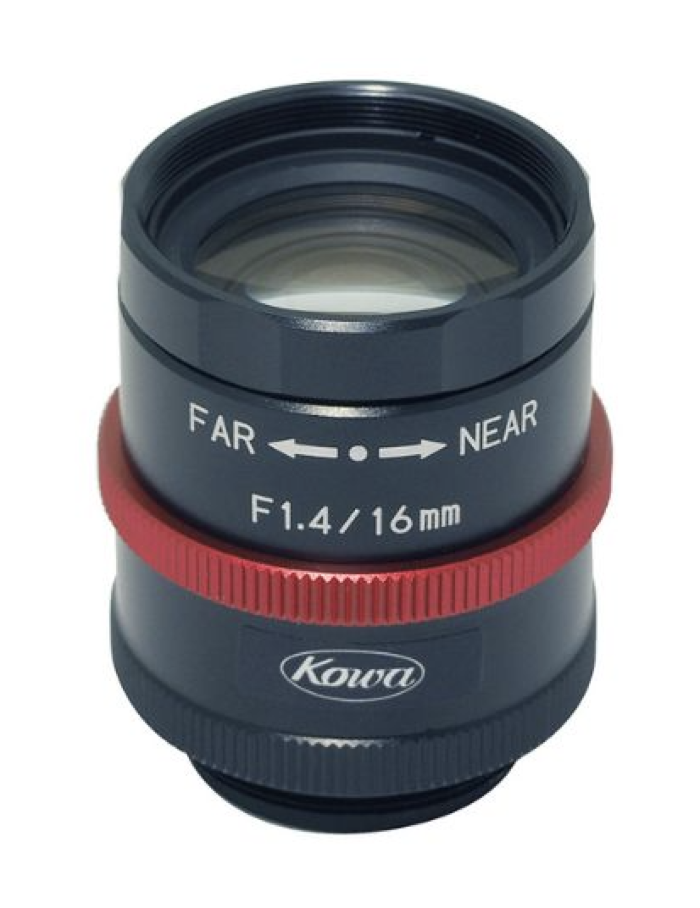

Kowa LM16JCM-V 2/3" 16mm Anti-Vibration Megapixel Lens

Quick Overview

2/3", 16mm, F1.4/F4/F8/F16, C-Mount, MP, Anti-Vibration
Overview

Kowa’s new JCM-V series is made for use in high vibration and high shock environments. With a design based on Kowa’s standard 2/3” JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.

Features:

  • For megapixel applications requiring a sensor size of 2/3" (Φ11mm) or smaller
  • Unique mechanical design to guard against strong vibration & shock
  • Two way reversible nut is utilized to tightly lock the focus adjustment ring in place
  • All internal glass elements are glued to the inside housing to improve durability
  • Ability to choose from four interchangeable iris plates. This provides the flexibility of having an adjustable F-stop while maintaining the advantage of a fixed iris with no moving parts
  • Specifications
    Focal Length f=16mm
    F-Number F=1 : 1.4, 4, 8, 16
    Picture Size 6.6x8.8mm
    Angle Of View Ver. Angle - 22.7°
    Hor. Angle - 30.0°
    Dia. Angle - 37.0°
    Distortion -0.05%
    Shooting Range at Minimum Focus Distance VER. - 84.4mm
    HOR. - 112.8mm
    DIA. - 141.2mm
    Minimum Focus Distance 0.2m
    Flange Back 17.526 mm in air
    Back Focus 13.1 mm in air
    Filter Screw Size M27x0.5
    Front/Rear Effective Dia. Front Φ20.2mm / Rear Φ15.5mm
    Mount C-Mount
    Exit Pupil 338.4mm
    Temperature Range -10°C ~ +50°C
    Storage Temperature Range -20°C ~ +60°C
    Resolution Center/Corner Center 120lp/mm / Corner 100lp/mm
    Weight 76.5g
