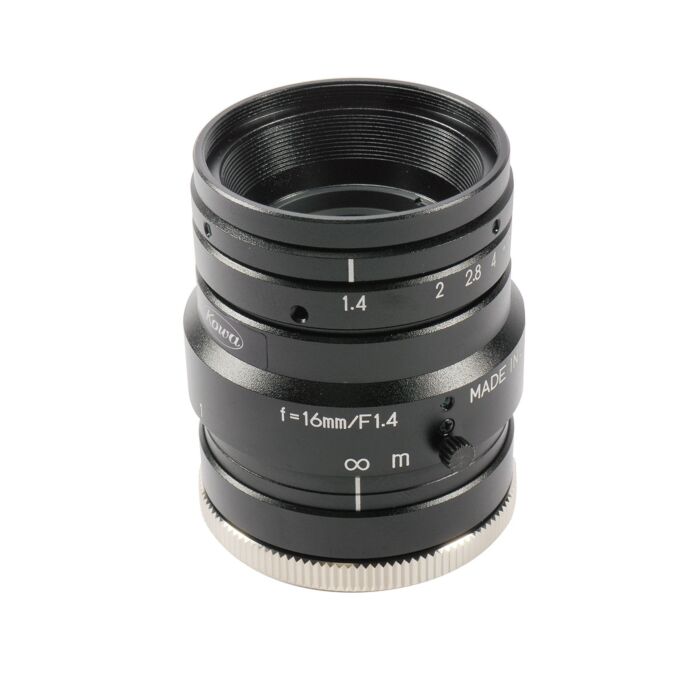

Kowa LM16HC 1" 16mm Megapixel Industrial FA Lens
1", 16mm, Megapixel Lens.
SKU
LM16HC
Introducing Kowa's lineup of megapixel lenses designed for 1" megapixel cameras. 1" megapixel HC lenses have low distortion, excellent light transmission, and can be used with smaller format size cameras.
Features:
| Focal Length (mm) | 16 mm |
| Image Size (mm) | 12.8x9.6 (Φ16) |
| Iris Range | F 1.4 - 16 |
| Focusing range (m) | 0.3 - ∞ |
| Iris | Manual |
| Focus | Manual |
| Shooting range at MOD (mm) | 251.5 x 186.2 |
| Angle of View (Degrees) | 1": 44.3 x 33.6 2/3": 30.8 x 23.2 1/1.8": 25.3 x 19.0 |
| Resolution (Center, Corner) | 120lp/mm, 80lp/mm |
| TV Distortion (%) | -1.0 |
| Back Focus in Air (mm) | 12.6 |
| Mount | C-Mount |
| Filter Thread (mm) | M35.5xP0.5 |
| Size (mm) | Φ43 x 52.9 |
| Weight | 150 |
| Temperature Range | -10°C - +50°C |
