  • Kowa LM16HC-SW Image # 1

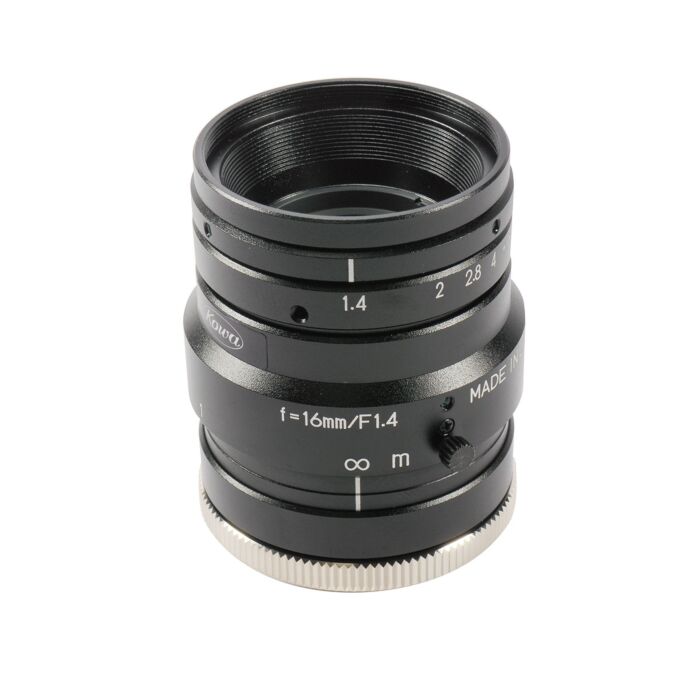

Kowa LM16HC-SW 1" 16mm Lens

Quick Overview

1", 16mm, SWIR Lens.
Overview

Incorporating Kowa's special coating technology, the 1" format HC-SW series maintains high transmission from 800nm to 2000nm. These lenses are designed for NIR and Short Wavelength Infrared (SWIR) applications.

Features:

  • High Transmission from 800nm to 1900nm
  • Infrared
  • IR Corrected Design
  • Specifications
    Focal Length (mm) 16 mm
    Image Size (mm) 12.8x9.6 (Φ16)
    Iris Range F 1.4 -16
    Focusing range (m) 0.3 - ∞
    Iris Manual
    Focus  Manual
    Shooting range at MOD (mm) 251.5 x 186.2
    Angle of View (Degrees) 1": 44.3 x 33.6
    2/3": 30.8 x 23.2
    1/1.8": 25.3 x 19.0
    TV Distortion (%) -1.0
    Back Focus in Air (mm) 12.6
    Mount C-Mount
    Filter Thread (mm) M35.5 x P0.5
    Size (mm) 43 x 52.9
    Weight 150
    Temperature Range -10°C - +50°C
