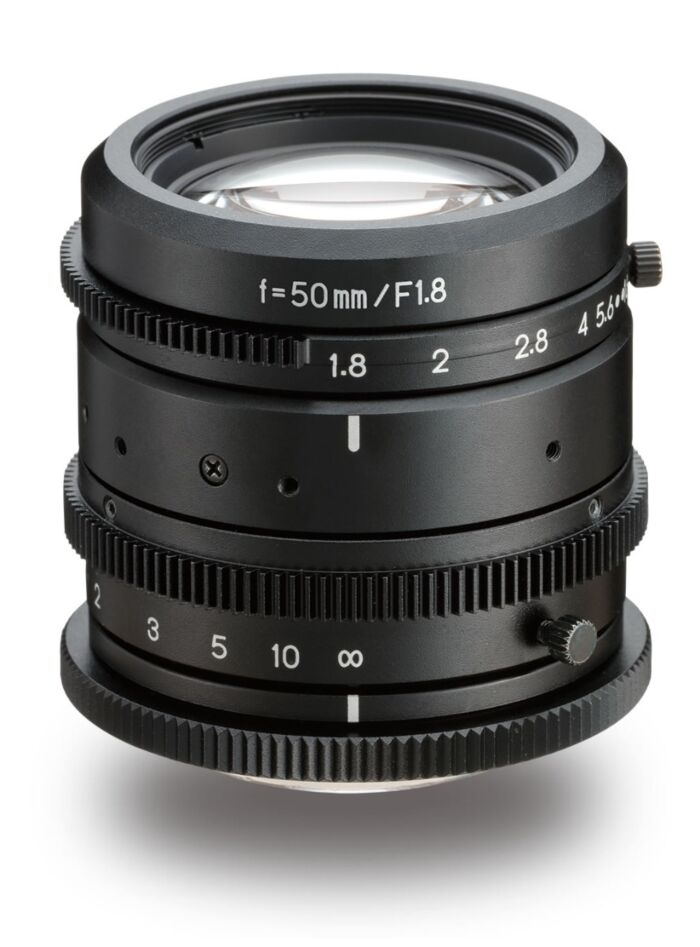

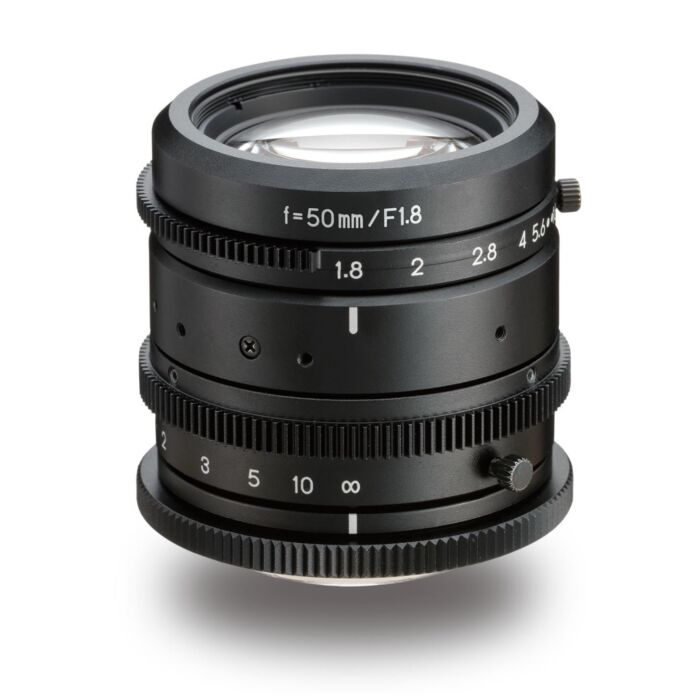

Kowa HC-IR Series: LM50HC-IR & LM60HC-IR 1" 5MP Lenses
Kowa's HC-IR Series includes the LM50HC-IR (LM50HC) and the LM60HC-IR (LM60HCIR). These cameras are ideal for ITS applications.
SKU
Kowa HC-IR Series: LM50HC-IR & LM60HC-IR 1" 5MP Lens
The HC-IR has Megapixel lenses, is IR-corrected, includes Locking screws for iris and focus, a Metal mount, and Metal housing.
Features:
- IR corrected design
- Excellent corner brightness
- High-performance compact lens
- Low distortion
- ITS
Applications:
| Focal Length (mm): | 50 |
| Sensor Size: | 1" |
| Pixel Size (µm): | 5 |
| Mount: | C-mount |
| Iris Control: | Manual |
| Iris Range (F-Stop): | 1,8 - 16 (LM50) 12-16 (LM60) |
| Lens Type: | Fixed Focal Lens |
| Wavelength Range: | VIS (380nm - 780nm), IR-corrected (Day & Night) |
| Focusing Range (m): | 1 - ∞ |
| Focus Control: | Manual |
| Shooting range at MOD, horizontal (mm): | 250,5 (LM50) 216,9 (LM60) |
| Shooting range at MOD, vertical (mm): | 187,8 (LM50) 162,1(LM60) |
| Resolution, Center: | 120 |
| Resolution, Corner: | 80 |
| Distortion (TV) (%): | -0,09 (LM50) -0.06 (LM60) |
| Back focus in air (mm): | 20,4 (LM50) 15.7 (LM60) |
| Size (mm): | Ø50 X 47,4 (LM50) Ø49,2 X 54,6 (LM60) |
| Weight (g): | 180 (LM50) 200 (LM60) |
| Temperature Range (℃): | -10°C - +50°C |
| Series: | HC |
| Application: | ITS |
