InVid Tech IMHD-19 (IMHD19): (1280x720) 19" LED Monitor HDMI, VGA, BNC

InVid Tech IMHD-17 (IMHD17) (1280 x 1024) 17" LED Monitor, HDMI, VGA, BNC

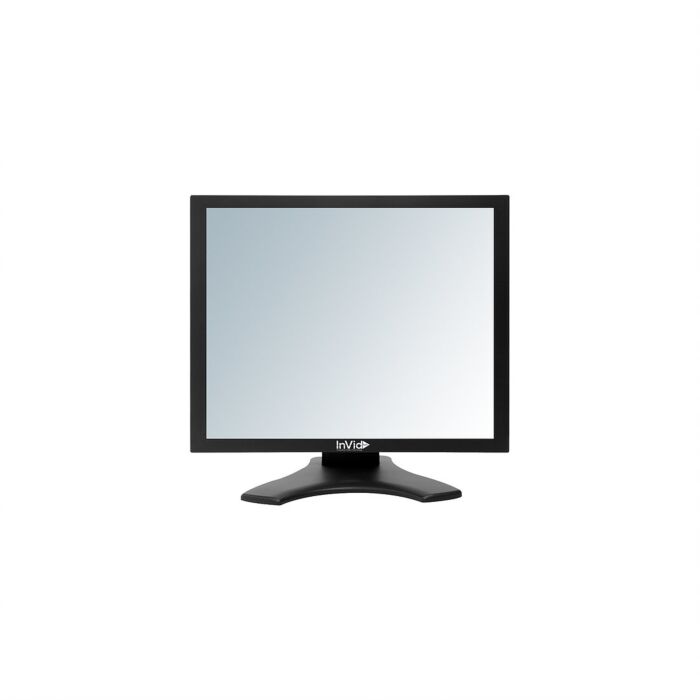

IMHD-17: 17" LED Square 4:3 Monitor
SKU
InVid Tech IMHD-17

The InVid Tech IMHD-17 is a 17" LED monitor suitable for video surveillance and security applications such as Law Enforcement, Remote Monitoring, and Risk Management.




Features:


  • Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA and BNC analog inputs (with looping BNC analog output)
  • Superlative image quality with 16.7 million color capability
  • Resolution:1280 x 1024
  • Customizable video settings in flexible On Screen Display (OSD) Menu with 7 language options
  • Bright LED illuminated panel with 170° H viewing angle
  • LED panel conserves energy and extends service life
  • Included desk stand is easily removable for 100mm VESA mounting
  •


    Applications:



  • Security and Video surveillance
  • Remote monitoring
  • Ideal for Commercial and Industrial settings
  • Risk Management
  • Identity Management
  • Government
  • Law Enforcement
  • Microscopy
  • Screen Size 17"
    Resolution 1280 x 1024 @60Hz
    Brightness 250cd/m2
    Contrast Ratio 1000:1
    Aspect Ratio 5:4
    Viewing Angle (H/V) 170° / 160°
    Pixel Pitch 0.264 x 0.264mm
    Display Colors 16.7 Million
    Response Time <5ms
    Video System NTSC / PAL
    Scanning Frequency (H) 31~80 KHz/ (V) 56 ~ 75 Hz
    HDMI-In 1
    VGA-In 1
    BNC-In/Out 1/1
    OSD Language

    English, Spanish, French, German, Italian,

    Portugese, Netherlands

    Dimensions (W x H x D)

    15.12” x 14.1” x 7.8”

    (384 x 358 x 195mm)

    Net Weight 8.8lbs (4.0KG)
    Tilt Stand / Tilt Range Fr: 5 / Rear: 15
    Cabinet Materials Plastic
    Color Black
    VESA Mount 100mm x 100mm (M4 x 10mm Screw)
    MTBF (Approx) 30,000 Hours
    Power Consumption <20W
    Power Source 100~240VAC
    Operating Temperature 32° ~104° F / 0° ~ 40° C
