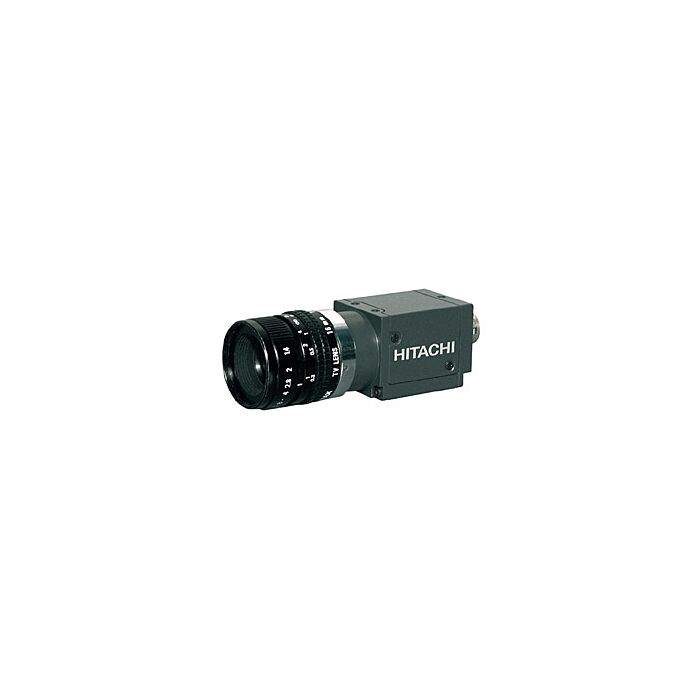

Hitachi KP-FR200SCL

Quick Overview

Mini-CameraLink Ultra-Compact Progressive Scan Raw Color CCD Camera

By adopting a CameraLink digital interface, higher speed video data transfer is possible.Furthermore, by adopting the small connector (SDR) of a Mini CameraLink standard, the size of the camera has been reduced.

High resolution combined with high frame rates are possible with this series of cameras.Can be used for high-precision and high-speed image processing in many applications.

  • Ultra Compact Cube Size Camera
  • 1/1.8” Format Progressive Scan CCD
  • Primary RGB Color Filter
  • 1628 x 1236 Effective Pixels
  • Raw Color Output (unprocessed)
  • 1200 TV lines of Resolution
  • 15 Frames / Second
  • CameraLink Output, Mini SCL Connector
  • SCL or PCL output
  • Selectable 8 or 10 bits / pixel
  • Frame-on-Demand Mode
  • RoHS Compliant
Imaging device 1/1.8-inch interline CCD
Total pixels 1688 (H) x 1248 (V)
Effective pixels 1628 (H) x 1236 (V)
Pixel pitch 4.4 µm (H) x 4.4 µm (V) [square lattice]
Color filter RGB primary color mosaic filter
Imaging area 7.16 mm (H) x 5.44 mm (V)
Scanning system Progressive
Aspect ratio 4 : 3
Frame rate 15 frames/second (full pixel readout)
Scanning frequency Horizontal: 18.75 kHz
Vertical: 14.97 Hz
Synchronization Internal
Lens mount C mount
Flange focal distance 17.526 mm
Video output Digital output Camera Link
Base configuration: 36.0000 MHz
(Note: maximum cable length is 10 m)
Output image size: 1628 (H)˜1236 (V) (full pixel readout)
Resolution Horizontal 1200 lines Vertical 1200 lines
Sensitivity 5.0 lx (F1.4, MAX GAIN)
Minimum illumination 5.0 lx (F1.4, MAX GAIN)
Signal noise to ratio 50 dB
Electronic shutter speed OFF, 1/15, 1/60, 1/125, 1/250, 1/1000, 1/2000, 1/10000, 1/50000 second
OFF is normal exposure (frame rate) or changeable by variable shutter (minimum 1/100000 second)
Frame on demand
Mode (A) Fixed shutter mode (8 steps or variable)
(B) ONE trigger mode
(C) VD reset mode
Trigger input CameraLink (CC1) *When Reset control mode CC1 and CC2 are used
Partial scan Selectable start position and height of picture grabbing in 1H step.
Power supply voltage DC12V ± 1V
Current consumption Approx. 170 mA (approx. 2.1 W)
Performance 0 to +40 °C (+32 to +104 °F), less than 90 % RH (without dew condensation)
Operation 10 to +50 °C (+14 to 122 °F), less than 90 % RH (without dew condensation)
Storage -20 to +60 °C (-4 to 140 °F), less than 70 % RH (without dew condensation)
Vibration endurance 98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance 686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions 29(W) x 29(H) x 29(D) mm (Not including protrusions)
Mass Approx. 50 g
