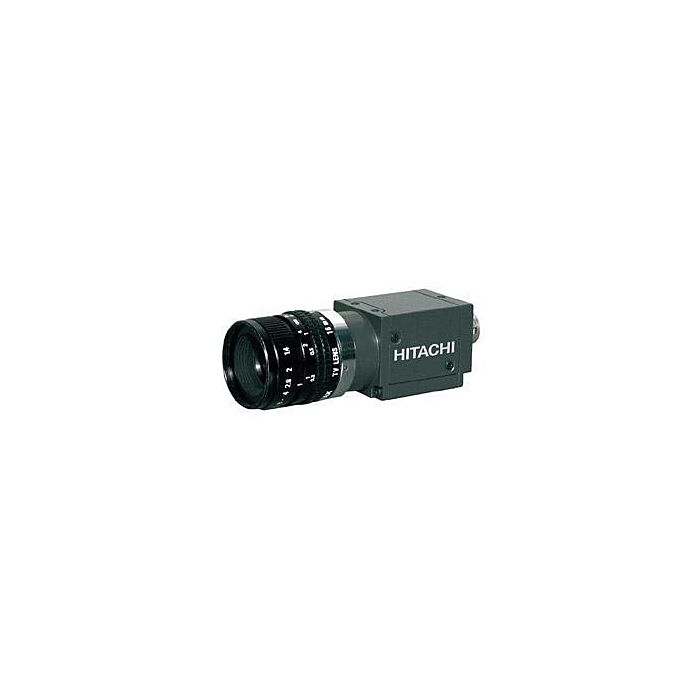

  • Hitachi KP-F37 | Ultra Compact Analog Progressive Scan Camera Image #1

Hitachi KP-F37 Ultra Compact Analog Progressive Scan Camera

Quick Overview

659 x 494 Effective Pixels, 1/3" Interline type Progressive Scan CCD, C-Mount.For pricing and technical support:

Designed for use in factory automation and industrial vision systems, the KP-F37 features an ultra compact size, square pixels, and progressive scan to provide high vertical resolution of moving objects. Featuring a single output connection, the KP-F37 operates at 70 frames per second, with 500 lines of horizontal resolution. Standard
features include external switch selection for all modes of operation, with an eight step electronic shutter featuring a maximum speed of 1/58,000 second, internal or external sync modes, and fixed, manual or automatic gain control. A frame-on demand function is available for capturing moving objects at a desired timing. In the one trigger mode
of operation, the rising edge of the trigger pulse starts the exposure, the durration of the trigger pulse controls the integration time, and the falling edge of the trigger pulse resets vertical sync and delivers the triggered image. The camera can also be operated in a fixed shutter mode or a reset control mode.


  • Ultra Compact Rugged Design
  • Single Output Connection
  • 70 Frames / Second
  • Multiple Step Electronic Shutter
  • Internal or External Sync Modes
  • Fixed / Manual / Auto Gain Mode
  • Frame-on-Demand Mode
  • External Mode Selection Switches


  • Microscopy
  • High Speed Image Processing
  • Inspection
  • Industrial
Image Sensor 1/3" Interline type Progressive Scan CCD
Pixels 659 x 494
Cell Size 7.4 x 7.4
Aspect Ratio 4:3
Scan Mode Progressive
Resolution 500 TV lines Horizontal
Min. Illumination 1.0 lux at F1.4
S/N 50 db
Gamma 1.0
Gain Manual, Fixed, or AGC
Shutter 8 steps 1/70 - 1/58000
Sync Internal / External
Trigger Frame-on-Demand 3 modes
One Trigger, Fixed Shutter, Reset Control
Output 70 F/s 1.0 Volts p-p
Power 12 volts DC 2.4 watts
Size (W x H x D) 29 x 29 x 38.5 mm
Lens C-Mount
Weight 55 g
