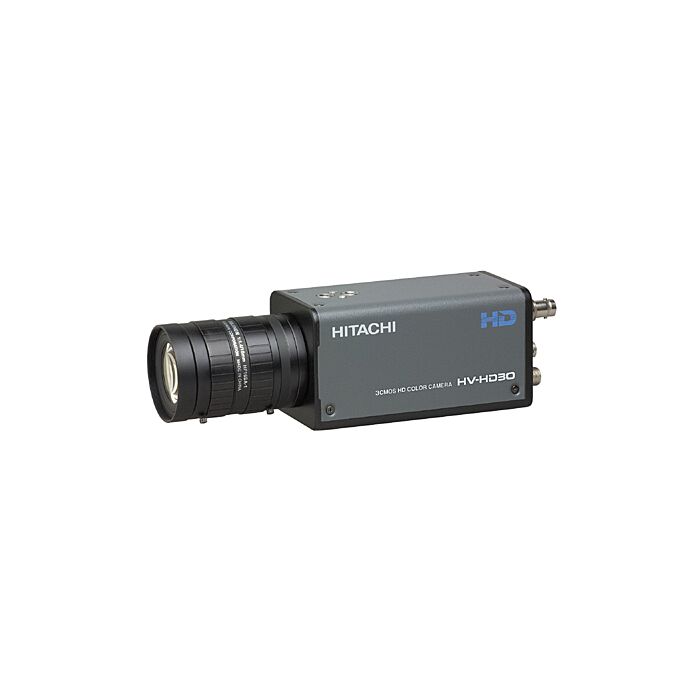

  • Hitachi HV-HD30 HV-HD30 | Three-CMOS, HDTV, P.O.V. Camera Image #1

Hitachi HV-HD30 HV-HD30 Three-CMOS HDTV P.O.V. Camera

Quick Overview

1312 x 1032 Total Pixels, 1/3" 1.3 million pixels CMOS, C-Mount.
Overview

The HV-HD30 HDTV Digital Color Camera incorporates three HDTV 1/3-inch, 1.3-megapixel CMOS sensors. The multi format output provides both 1080i and 720p camera outputs. The camera is a compact box type head weighing just 600 grams.

A wide range of adjustments can be made remotely, providing versatility that makes the HV-HD30 usable as a studio sub-camera, a remote observation applications, point of view camera, and in industrial applications such as factory automation, high-end monitoring, and medical applications.

Features:

  • 720p @ 50 and 60 Hz
  • 1080i @ 50 & 60 Hz
  • HD-SDI (SMPTE 292M) and Analog Outputs
  • High functionality and performance
  • Compact size
  • Weighs just 600 grams without lens
  • Remote Control

  • Applications:

  • Studio Sub-Camera
  • Point of View Camera
  • Observation Camera
  • Industrial
  • Factory Automation
  • High-End Monitoring
  • Medical Applications
  • Specifications
    Scan Format HDTV 1080i 59.94/50 or 720p 59.94/50
    Imaging Device 1/3" 1.3 million pixels CMOS
    Total Pixels 1312 (H) x 1032 (V)
    Effective Pixels 1280 (H) x 720 (V)
    Synchronization Internal / External (Tri-level sync)
    Lens Mount C-Mount (Flange back: 17.526 mm in air)
    Horizotal Resolution 720 TV Line
    Sensitivity 2000 lx / F5.6
    S/N 50 dB Typ (HD-SDI output decord, Y-channel, bandwidth: 30MHz)
    High gain 0, +3, +6, +9, +12, +15, +18dB
    Shutter 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec
    Lock Scan 1/62 to 1/1985
    HD-SDI Output 1 system: SMPTE292M 1.5 Gbps
    Analog Output 1 system (D-sub15pin) : Component (Switchable RGB, YPBPR)
    Y, G 1.0 Vp-p/75 Ohms - PB, PR, R, B 0.7 Vp-p/75 Ohms
    Power Supply 12 VDC (10.8 V to 14 V)
    Power Consumption Approx. 9 W
    Dimensions 65(W) x 65(H) x 130(D) mm
    Mass Approx. 600 g (Except lens)
    Operation Temperature -10 to +40 ºC
    Connector HD-SDI output (BNC, 75O)x1,
    D-sub15 pin (Analog output, external 3-level sync) x1
    Lens control, Serial cotrol
    DC power supply input
