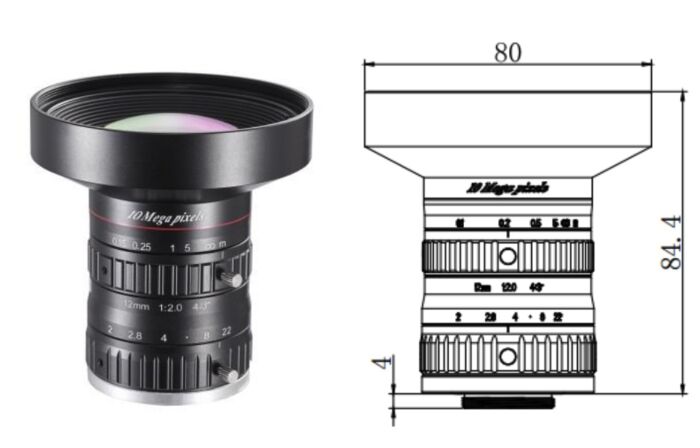

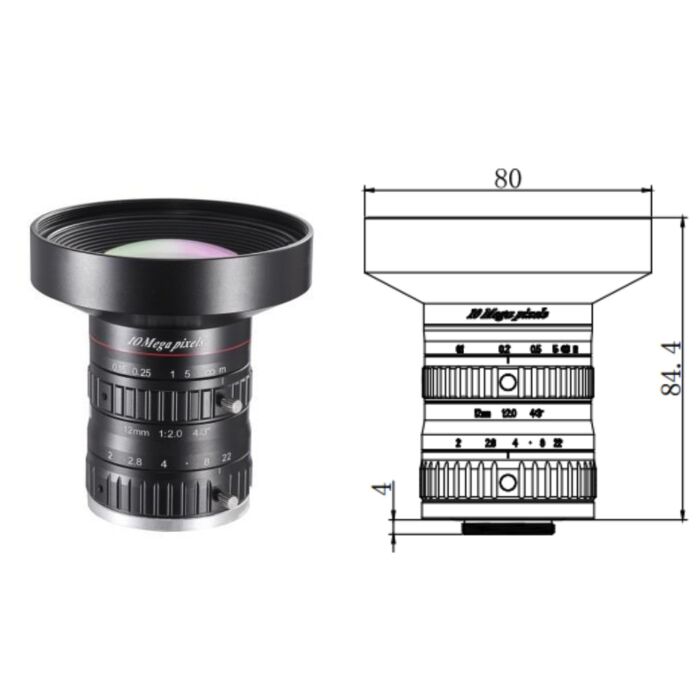

Hikvison SA1220M-10MP (SA1220M10MP) 10mm Lens
The lens is an important component of the machine vision system, and it is mainly used to focus the imaging target on the photosensitive surface of the image sensor. The quality of the lens directly affects the overall performance of the machine vision system, and the lens will affect the resolution, contrast, depth of field and a variety of aberrations, playing a key role in the imaging quality.-Hikvision
SKU
Hikvison SA1220M-10MP
The Hikvision SA-1220M-10MP is built for machine vision and several other applications.
Features:
Applications:
|
Model |
SA1220M-10MP |
Specifications |
Fixed Focal Length Manual Iris Lens 10MP |
||
|
Focal Length |
12mm |
Mount |
C mount |
||
|
Iris |
F2.0-F22 |
Front Thread |
M77*0.75mm |
||
|
Image Format |
Φ23mm (4/3") |
Flange Back Focal Length |
17.5mm |
||
|
Distortion |
-2.4% |
M.O.D |
0.15 m |
||
|
Control |
Iris |
Manual (locking structure) |
Outer Size |
Φ80*88.4mm |
|
|
Focus |
Manual (locking structure) |
Weight |
447g |
||
|
Zoom |
– |
Working Operating Temperature |
-10~50℃ |
||
|
Field of View |
D |
1" |
68.9° |
4/3" |
89.0° |
|
H |
57.3° |
75.5° |
|||
|
V |
44.2° |
61.1° |
|||
