  • HF9HA-1B Image #1

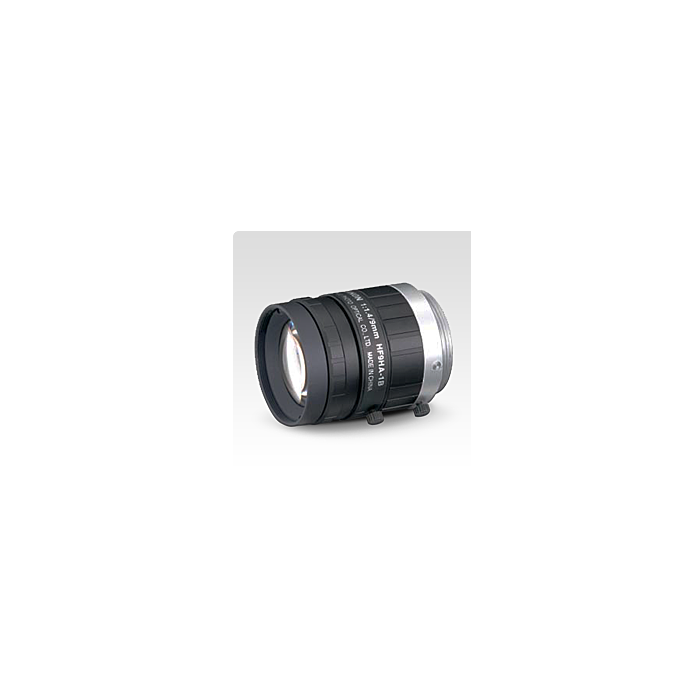

HF9HA-1B: Fujinon 2/3" 9mm 1.5 Megapixel Lens (C-Mount)

Quick Overview

HF9HA-1B from Fujinon achieves high-resolution, supporting up to 1.5 megapixel cameras.
Overview

Designed for low distortion, enabling faithful image input. Compact, lightweight and robust design, supporting various systems.



Features:



  • Fixed Focal
  • Manual Iris
  • Metal Mount
  • For MP Cameras
  •


    Applications:



  • Machine Vision
  • Quality Inspection
  • Industrial Imaging
  • Specifications
    Focal Length 9mm
    Iris Range F1.4-F16
    Angle of View
    53.3° x 40.5°(2/3")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 55g
    No Video available
