  • HF75SA-1 Image #1

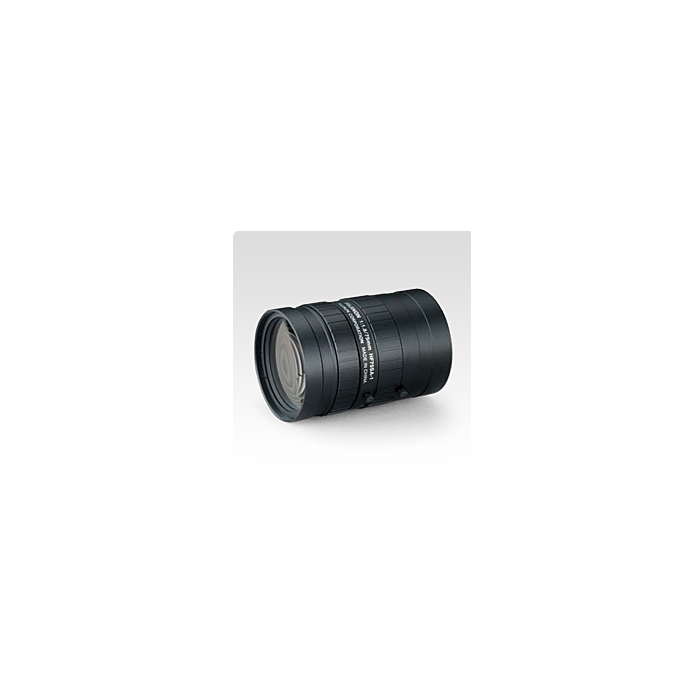

HF75SA-1: Fujinon 2/3" 75mm 5 Megapixel Lens (C-Mount)

Quick Overview

HF75SA-1 is a high-resolution 5 megapixel camera is designed for Machine Vision applications.
Overview

The HF75SA-1 includes a robust enclosure resistant to vibrations and shocks as well as locking knobs for the iris and the focus.



Features:



  • Fixed Focal
  • Manual Iris
  • Metal Mount
  • C-Mount
  • Megapixel Cameras
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Industrial Imaging
  • Industrial Inspection
  • Specifications
    Focal Length 75mm
    Iris Range F1.8-F22
    Angle of View
    6.7° x 5.0°(2/3")
    Focus range (from front of the lens) (mm) ∞-900
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.01
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 305g
