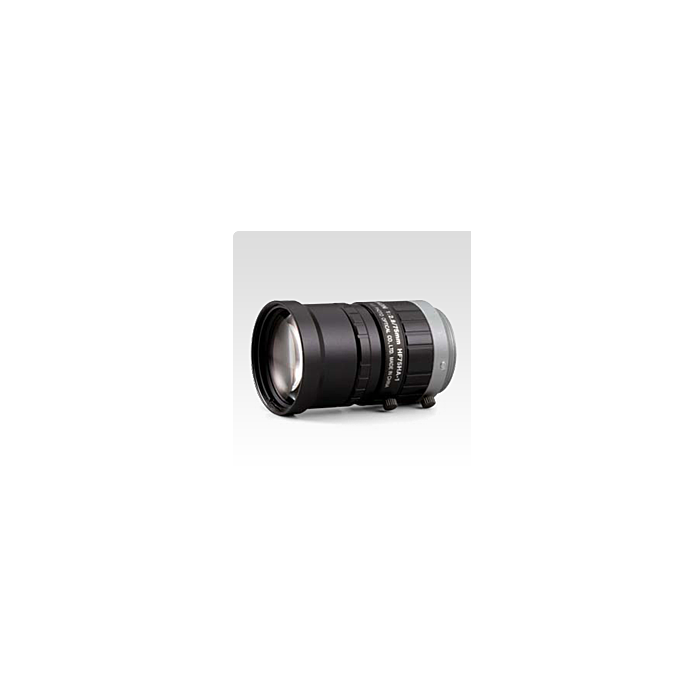

HF75HA-1B (HF75HA1B): Fujinon 2/3" 75mm 1.5 Megapixel Lens (C-Mount)

HF75HA-1B is designed for low distortion imagery, enabling faithful image input in industrial applications.
SKU
HF75HA-1B

Fujinon's HF75HA-1B includes focus & iris lock tabs, enabling excellent performance in high vibration environments.



Features:



  • Format: 2/3"
  • Focal Length: 75mm
  • Aperture: F2.8
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Focal Length 75mm
    Iris Range F2.8-F22
    Angle of View
    6.7° x 5.0°(2/3")
    Focus range (from front of the lens) (mm) ∞-1,100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M30.5x0.5
     TV Distortion (%) 0.36
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 55g
