  • HF50SA-1 Image #1

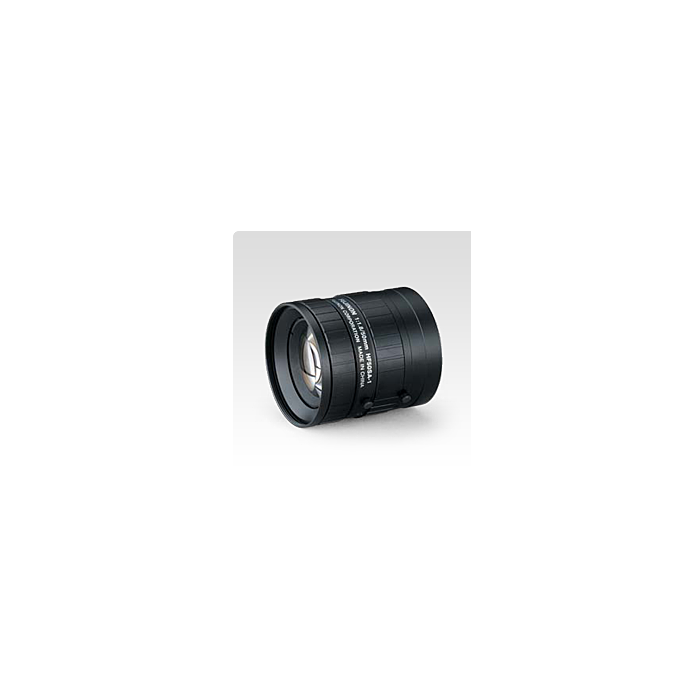

HF50SA-1: Fujinon 2/3" 50mm 5 Megapixel Lens (C-Mount)

Quick Overview

Fujinon's HF50SA-1 high resolution C-mount lens supports digital cameras up to 5 megapixels and uses superior optics designed for factory automation and machine vision.
Overview

The HF50SA-1 is a compact and robust lens featuring a rear focusing system for applications where highly detailed close-up imaging is a priority.



Features:



  • Format: 2/3"
  • Focal Length: 50mm
  • Aperture: F1.8
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Factory Automation
  • Industrial Inspection
  • Industrial Imaging
  • Quality Control
  • Specifications
    Focal Length 50mm
    Iris Range F1.8-F22
    Angle of View
    9.7° x 7.3°(2/3")
    Focus range (from front of the lens) (mm) ∞-400
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
     TV Distortion (%) 0.08
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 240g
