HF35HA-1B Image #1

HF35HA-1B (HF35HA1B): Fujinon 2/3" 35mm 1.5 Megapixel Lens (C-Mount)

HF75HA-1B Image #1

HF75HA-1B (HF75HA1B): Fujinon 2/3" 75mm 1.5 Megapixel Lens (C-Mount)

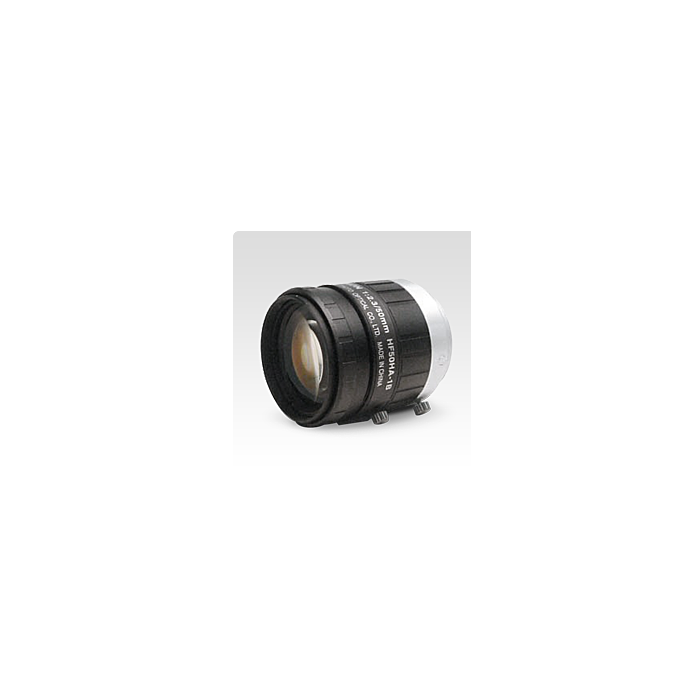

HF50HA-1B (HF50HA1B): Fujinon 2/3" 50mm 1.5 Megapixel Lens (C-Mount)

The HF50HA-1B is a 1.5 megapixel lens with a C-Mount developed for machine vision and industrial imaging applications.
SKU
HF50HA-1B

Fujinon's HF50HA-1 is designed for 1.5 megapixel cameras.



Features:



  • Format: 2/3"
  • Focal Length: 50mm
  • Aperture: F2.3
  • Iris Type: Manual Iris
  • Mount: C-Mount




Applications:



  • Machine Vision
  • Industrial Imaging



Focal Length 35mm
Iris Range F1.6-F22
Angle of View
14.3° x 10.8°(2/3")
Focus range (from front of the lens) (mm) ∞-250
Operation Focus Manual
Operation Iris Manual
Filter Thread M25x0.5
 TV Distortion (%) 0.10
Mount C-Mount
Sensor Size (max.) 2/3"
Weight 45g
