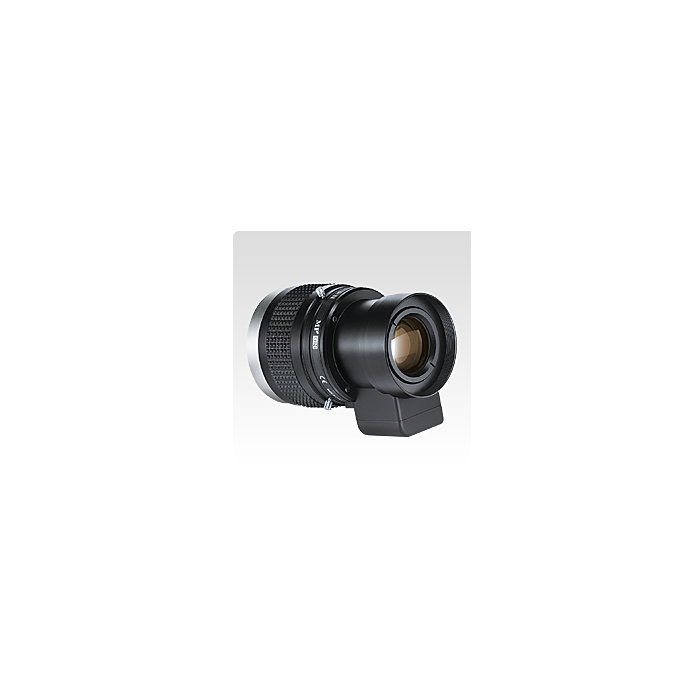

HF35SR4A-SA1L (HF35SR4ASA1L): Fujinon 2/3" 35 Megapixel Lens (C-Mount)
HF35SR4A-SA1L is a CS-Mount 35mm Fixed Focal CCTV Lens built for high-quality day/night surveillance with optical performance up to 5MP in resolution.
SKU
HF35SR4A-SA1L
The HF35SR4A-SA1L from Fujinon is a 5 mega day & night, 35mm (in) fixed focal length lens.
Features:
Applications:
| SKU | HF35SR4A-SA1L |
| Lens Size | 35MM |
| Iris Type | Auto Iris |
| Desired Aperture | F/2.0 |
| Focus Control | Manual |
| IR Corrected | Yes |
| CCD Size | 2/3" |
| Back Focal Distance（in air）（mm） | 19.65 |
| Exit Pupil Position （From Image Plane）（mm） | －68 |
| Filter Thread | M40.5 × 0.5 |
| Coil Resistance | Drive Coil Damping Coil 190Ω 1,150Ω |
| Current Consumption | 23mA（Max.） at DC 4V |
| Mount | C |
