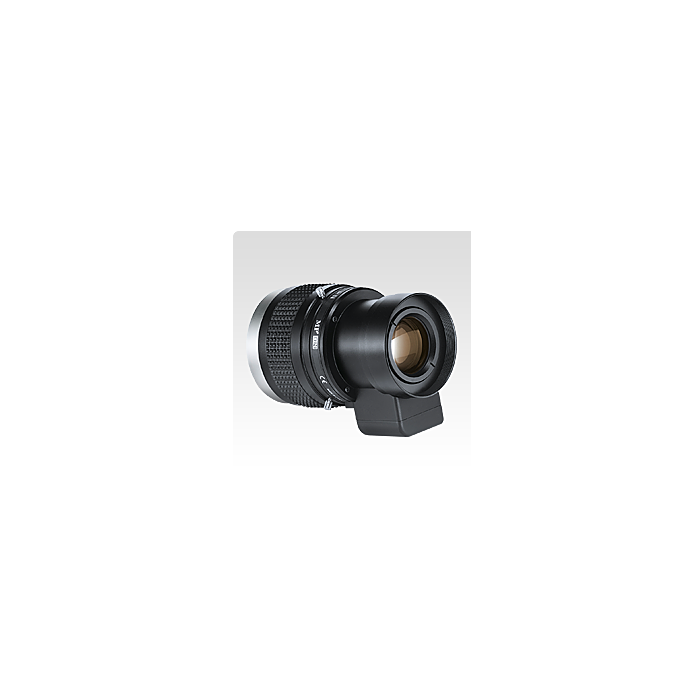

HF35SR4A-1: Fujinon 2/3" 5 Megapixel Day/Night Lens (C-Mount)

Quick Overview

Fujinon's HF35SR4A-1 is a high image-quality surveillance with optical performance supporting 5 megapixels.
Overview

Advanced surveillance is possible in combination with 2/3" cameras seeking high performance.This lens is best suited for day & night cameras.



Features:



  • Fixed Focal Length
  • Telephoto Long Focal
  • DC Auto Iris
  • C-Mount (Metal)
  • ND Filter
  • RoHS Compliant
  •

    Applications:



  • CCTV
  • Day &  Night Surveillance
  • Security
  • Specifications
    Fixed Focal Length 35mm
     Focus  Manual
    Iris Range F2.0 - T360
    Iris Manual
    Back Focal Distance (In Air) 19.65mm
    Exit Pupil Position (From Image Plane) -68mm
    Object Dimensions at M.O.D.
    4 : 3 Aspect Ratio
    2/3" 191 mm × 143 mm
    Object Dimensions at M.O.D.
    4 : 3 Aspect Ratio
    1/2" 139 mm × 104 mm
    Object Dimensions at M.O.D.
    4 : 3 Aspect Ratio

    1/3" 104 mm × 78 mm
    Object Dimensions at M.O.D.
    16 : 9 Aspect Ratio

    2/3" 208 mm × 117 mm
     Object Dimensions at M.O.D.
    16 : 9 Aspect Ratio

    1/2" 151 mm × 85 mm
     Object Dimensions at M.O.D.
    16 : 9 Aspect Ratio

    1/3" 114 mm × 64 mm
     Angular Field of View
    4 : 3 Aspect Ratio

    2/3" 14°20′ × 10°46
     Angular Field of View
    4 : 3 Aspect Ratio

    1/2" 10°27′ × 7°51′
    Angular Field of View
    4 : 3 Aspect Ratio
    1/3" 7°51′ × 5°53′
    Angular Field of View
    16 : 9 Aspect Ratio
    2/3" 15°36′ × 8°48′
    Angular Field of View
    16 : 9 Aspect Ratio
    1/2" 11°22′ × 6°25′
    Angular Field of View
    16 : 9 Aspect Ratio
    1/3" 8°33′ × 4°49′
    Focusing Range (From Front of the Lens) ∞ - 0.75 m
    Filter Thread M40.5 × 0.5 mm
    Mass 265g
    Coil Resistance
    Drive Coil 190 Ω
    Coil Resistance
    Damping Coil 1,150 Ω
     Current Consumption
     23 mA (Max.) at DC 4V
