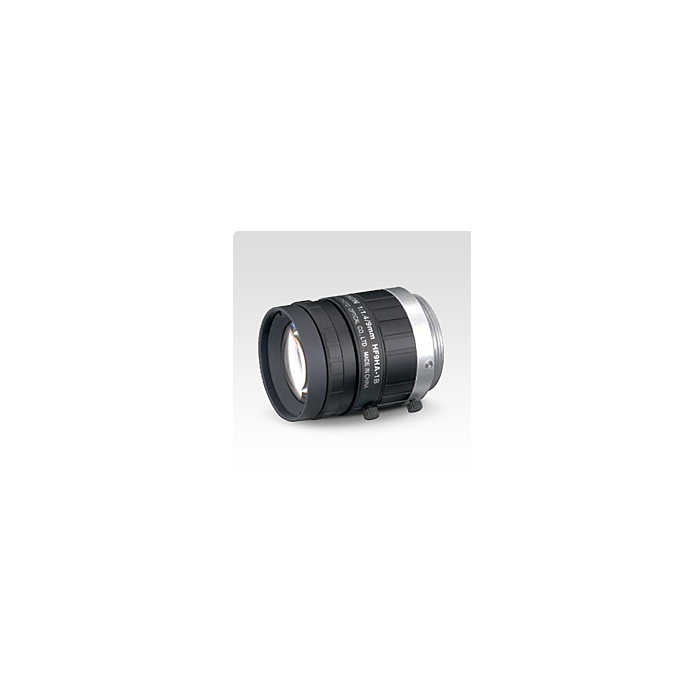

  • HF35HA-1B Image #1

HF35HA-1B: Fujinon 2/3" 35mm 1.5 Megapixel Lens (C-Mount)

Quick Overview

Fujinon's HF35HA-1B is a high quality 1.5 Megapixel C mount lens designed for industrial applications like robotics and machine vision.
Overview

HF35HA-1B is designed achieving high-resolution imaging, supporting up to 1.5 megapixel cameras.



Features:



  • Format: 2/3"
  • Focal Length: 35mm
  • Aperture: F1.6
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Industrial Inspection
  • Specifications
    Focal Length 35mm
    Iris Range F1.6-F22
    Angle of View
    14.3° x 10.8°(2/3")
    Focus range (from front of the lens) (mm) ∞-250
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M25.5x0.5
     TV Distortion (%) 0.10
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 45g
    No Video available
