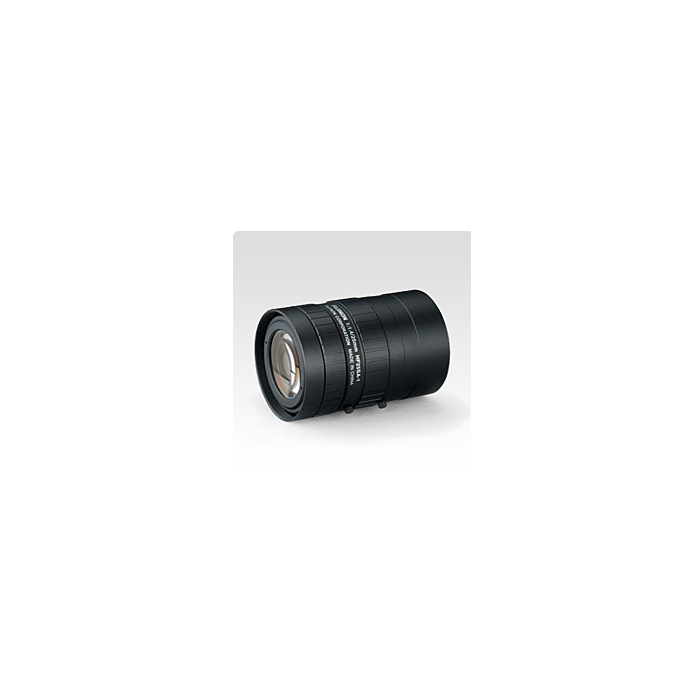

HF25SA-1 (HF25SA1): Fujinon 2/3" 25mm 5 Megapixel Lens (C-Mount)

The Fujinon HF25SA-1 2/3" 25mm f/1.4 C-Mount Fixed Focal Lens high resolution C-mount lens supports digital cameras up to 5 mega pixel and uses superior optics to achieve corner-to-corner performance with low distortion.
SKU
HF25SA-1

HF25SA-1 is Designed for factory automation and machine vision applications.



Features:



  • Fixed Focal
  • For Megapixel Camera (5 Megapixel)
  • Manual Iris
  • C Mount.
  • Metal Mount
  • Wide Aperture Rate (F1.4)
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Focal Length 25mm
    Iris Range F1.4-F22
    Angle of View
    30.2° x 22.9°(2/3")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M49x0.75
    TV Distortion (%) -0.06
    Mount C-Mount
    Sensor Size (max.) 2/3"
    Weight 315g
