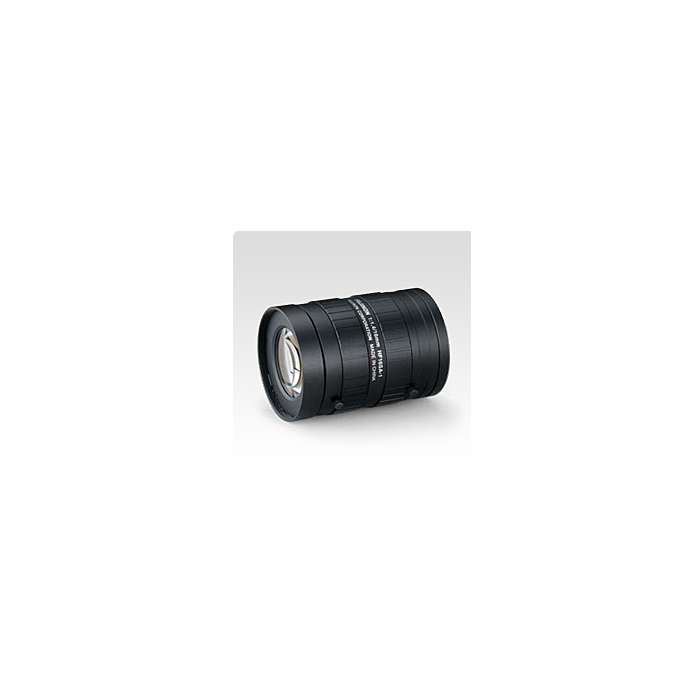

HF16SA-1 (HF16SA1): Fujinon 2/3" 16 mm 5 Megapixel Lens (C-Mount)

Quick Overview

The HF16SA-1 has a High-resolution design, providing support for up to 5 megapixel camera resolution.

Overview

Fujinon's HF16SA-1 has an enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.

Features:

Fixed Focal

Manual Iris

Metal Mount

Wide Aperature

Applications:

Machine Vision

Industrial Imaging

Specifications

Focal Length	16mm
Iris Range	F1.4-F22
Angle of View	30.2° x 22.9°(2/3")
Focus range (from front of the lens) (mm)	∞-100
Operation Focus	Manual
Operation Iris	Manual
Filter Thread	M49x0.75
TV Distortion (%)	0.11
Mount	C-Mount
Sensor Size (max.)	2/3"
Weight	285g

No Video available

PDF Files:

5Mega-Pixel

(Size: 603 KB)

HF16SA-1
