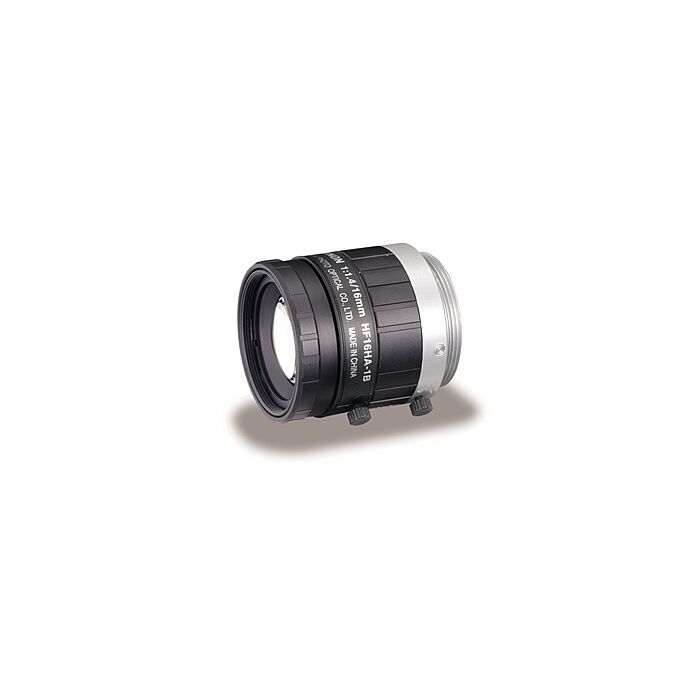

  • HF16HA-1B Image #1

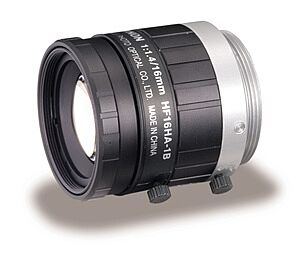

HF16HA-1B: Fujinon 2/3" 16mm 1.5 Megapixel Lens (C-Mount)

Quick Overview

HF16HA-1B 16mm f/1.4 Fixed Focal Lens with C-Mount and Locking Iris/Focus for 2/3-Inch CCD is built for Industrial and Machine Vision Applications
Overview

Designed for low distortion the HF16HA-1B is ideal for industrial imaging applications.



Features:



  • Format: 2/3"
  • Focal Length: 16mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  • Industrial Imaging
  • Specifications
    Focal Length 16mm
    Iris Range F1.4-F16
    Angle of View
    30.5° x 22.9°(2/3")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread M25.5x.05
    Mount C-Mount
    Sensor Size (max.) 2/3"
    TV Distortion -0.87
    Weight 45g
