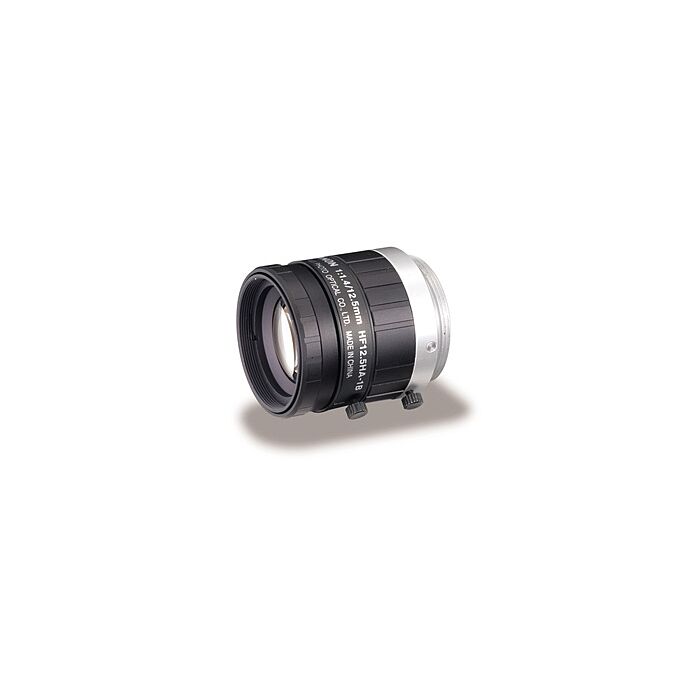

HF12.5SA-1 (HF12.5SA1): Fujinon 2/3" 12.5mm 5 Megapixel Lens (C-Mount)
Fujinon HF12.5SA-1 designed for factory automation and machine vision applications, the high resolution C-mount lens supports digital cameras up to 5 Megapixels and uses superior optics to achieve corner-to-corner performance with low distortion.
SKU
HF12.5SA-1
The HF12.5SA-1 employs High-resolution design, providing support for up to 5 megapixel camera resolution. Rear focusing system provides improved performance in macro photography. Wide-aperture (F1.4) design achieves clear images under low light intensity.
| Focal Length | 12.5mm |
| Iris Range | F1.4-F22 |
| Angle of View |
38.0° x 29.0°(2/3") |
| Focus range (from front of the lens) (mm) | ∞-100 |
| Operation Focus | Manual |
| Operation Iris | Manual |
| Filter Thread (mm) | M49x0.75 |
| Mount | C-Mount |
| Sensor Size (max.) | 2/3" |
| TV Distortion (%) | -0.08 |
| Weight | 295g |
