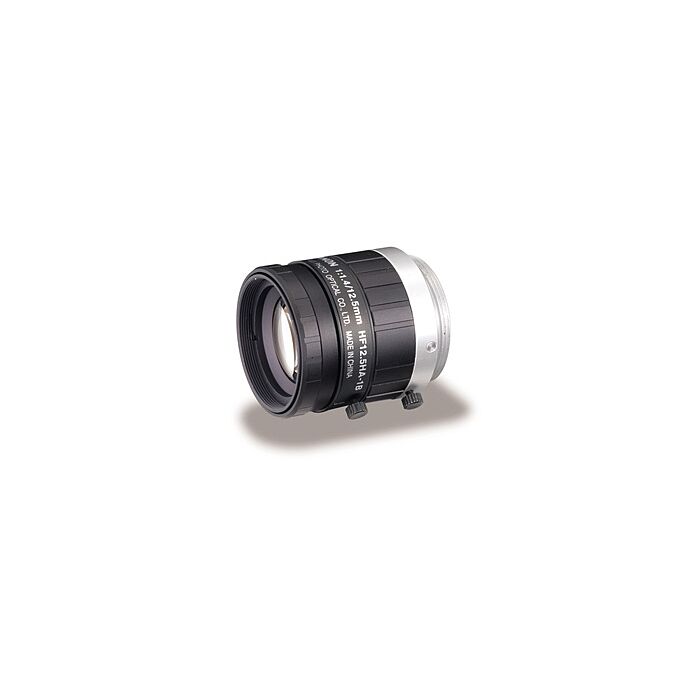

HF12.5HA-1B: Fujinon 2/3" 12.5mm 1.5 Megapixel Lens (C-Mount)

Quick Overview

Fujinon's HF12.5HA-1B is a high quality C-mount lens designed for industrial applications such as industrial inspection and machine vision.
Overview

The HF12.5HA-1B is compact, lightweight built with a robust design and supports various systems.



Features:



  • Format: 2/3"
  • Focal Length: 12.5mm
  • Aperture: F1.4
  • Iris Type: Manual Iris
  • Mount: C-Mount
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  • Quality Control
  • Specifications
    Focal Length 12.5mm
    Iris Range F1.4-F16
    Angle of View
    39.2° x 29.4°(2/3")
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Mount C-Mount
    Filter Thread M25.5x0.5
    Sensor Size (max.) 2/3"
    TV Distortion -1.95
    Weight 45g
