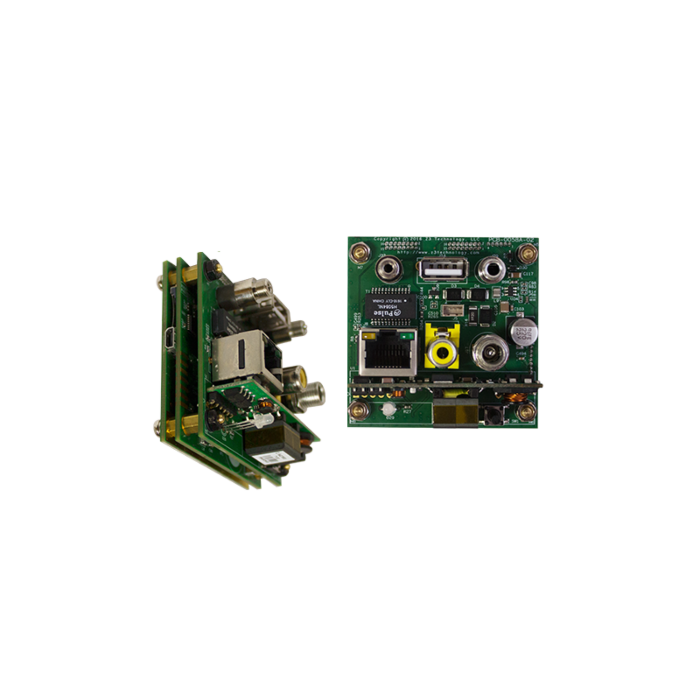

  • HE2K-DCK-1x | Z3 Camera Dock | Compact HD Camera Dock | Sony Camera Dock Image #1

HE2K-DCK-1x: Z3 Compact HD Camera Dock

Quick Overview

The HE2K-DCK-1x is a compact encoder system designed to enhance Sony’s FCB-EV Series Block Cameras. The hardware consists of encoder boards capable of encoding H.265/HEVC and H.264 video in HD resolutions. The boards feature onboard interfaces including GigE, USB 2.0, RS-485, Audio Input, Micro-HDMI Output and Composite Output.
Overview

These features combined with the existing capabilities of the Sony Block Camera allow for a complete compact HEVC HD video encoding solution. Users are able to purchase the HE2K-DCK-1x as an OEM starter kit or a complete package that includes an optional enclosure for the entire solution.



Features:



  • Natively Integrates with the FCB-EV Series Sony Block Cameras
  • Pass VISCA™ Camera Control Commands Over IP, ONVIF® Profile S
  • High-Quality Efficient H.265/HEVC Video Encoding
  • Low Bandwidth, Low Latency Video Encoding
  • Easy-to-Use HTTP-Based Control Interface
  •


    Applications:



  • Sony Block Cameras
  • Specifications
    Interfaces Video from Sony FCB-EV Series block camera via KEL ribbon cable1, GigE, USB 2.0, Audio Input, RS-232, RS-485, Micro-HDMI Output, Composite Output
    Video Codecs H.265/HEVC, H.264 and MJPEG
    Encoding Resolutions 60, 59.94, 50, 30, 29.97, 25 @1080p and 720p
    Output Formats RTP, RTSP, MPEG-2 TS and RTMP2
    Features • Low Latency, Low Power • Ability to Resize 1920x1080 Camera Input to Lower Resolutions Keeping Full Field of View • Pass VISCA™ Camera Control Commands over IP • ONVIF® Profile S Compliant • Simultaneous encode of H.265/HEVC and H.264 • Power over Ethernet (PoE) • Optional Chassis for Camera and Encoder Board* • Compatible with ZEUS® Video Decoders2
    Encoder Board Size 58 x 58 mm (2.28 x 2.28 in)
    Power Consumption 4.5W typical while encoding H.265/HEVC video in 1080p60
