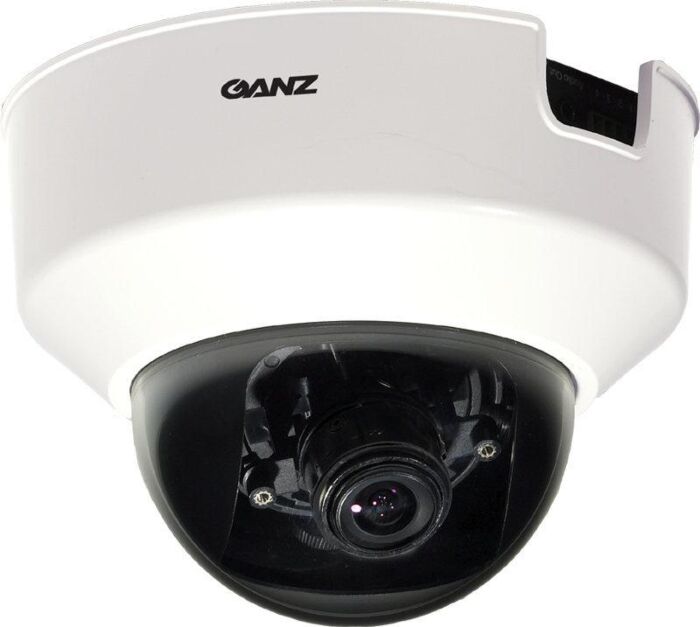

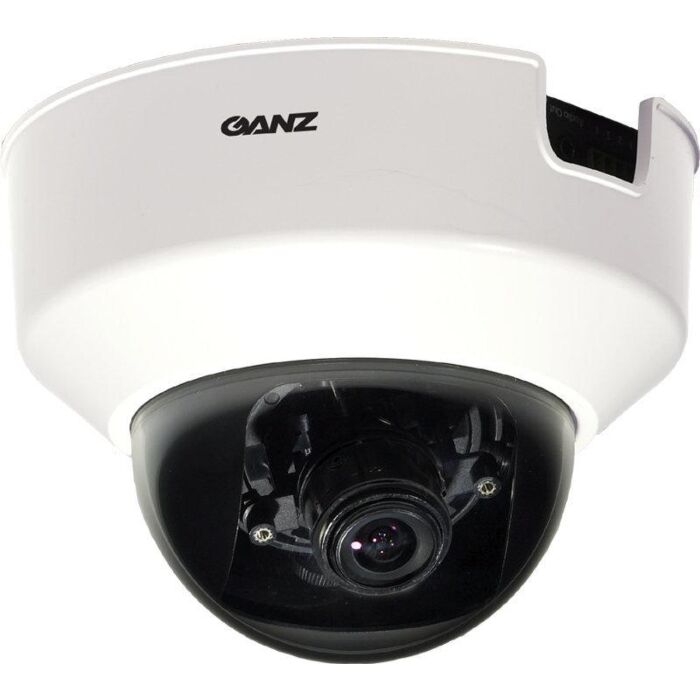

Ganz ZN-D2024 Indoor Network Dome Camera
This IP indoor network dome camera, perfect for any home or business, comes complete with varifocal lens, 3-axis lens adjustment, real-time MPEG-4 and MJPEG compression, 2 way audio and VGA resolution.
SKU
ZN-D2024
The ZN-D2024 network dome camera with varifocal lens is ideal for indoor residential or commercial use. It has a 3-axis lens adjustment mechanism for wall or ceiling mount applications. The IP dome features real-time MPEG-4 and MJPEG compression, 2 way audio and VGA resolution.
Features:
2~4mm Varifocal Lens
10/100 Mbps Ethernet with RJ-45 connector
3 user level settings
640 x 480 resolution
Two-way audio
Security
Surveillance
Meetings
Features:
Applications:
|
Lens
|
SDI : 576i, 480i - HD-SDI: 1080/60i, 1080/50i, 720/60p, 720/50i
|
|
Angle
|
53.2 ° ~ 105.1 ° (horizontal)
|
|
Shutter
|
1/5s to 1/15000s
|
|
Sensor
|
Micron 1/4" CMOs sensor with VGA resolution
|
|
Min. Illumination
|
1.5 lux / F1.4
|
|
Video
|
Compression: MJPEG & MPEG-4 video
|
|
Display
|
640 x 480 up to 30fps |
|
Audio
|
Compression:
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 Kbps to 128 Kbps |
|
Interface
|
Built-in microphone, External microphone input, Audio input
|
|
LED Indicator
|
System power and status indicator
System activity and network link indicator |
|
Power Consumption
|
12V DC / Max 3.6W
|
|
Operating Temperature/Humidity
|
0 ° ~ 55 ° C / 20% ~ 80% RH
|
|
Networking
|
10/100 Mbps Ehternet, RJ-45
|
|
Protocols
|
IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, and PPPoE |
|
Dimensions (D x H)
|
143mm x 106mm (H)
|
|
Weight
|
Net: 566g
|
| Computer Requirements |
Windows/XP/Vista - Intel 2.0 GHz Pentium IV CPU - 512MB RAM
|
