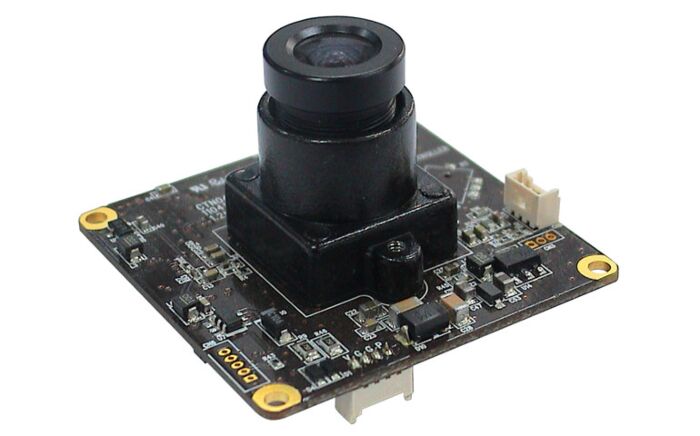

  • Ganz CMB712-CS 600TVL Digital D/N Board Camera CS Mount Image

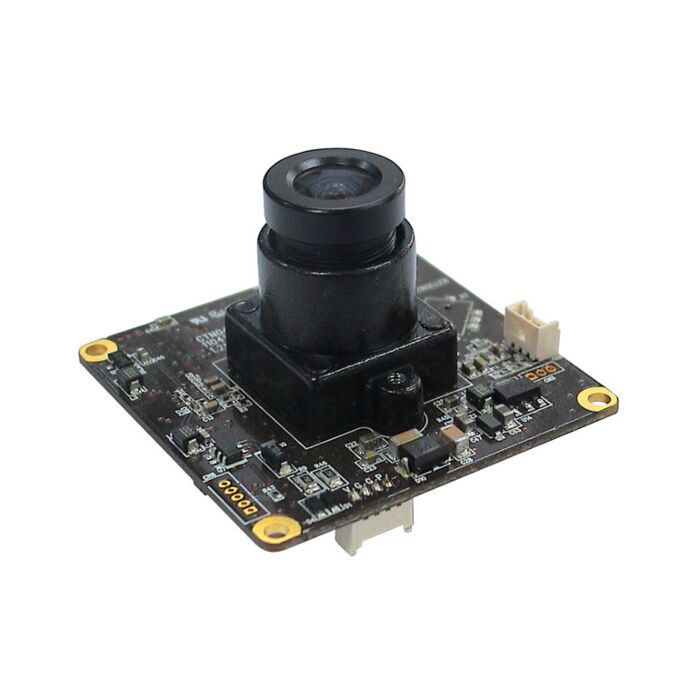

Ganz CMB712-CS 600TVL Digital D/N Board Camera CS Mount

Quick Overview

600 TVL Color Board Camera w/ CS Mount

Ganz CMB712-CS 600 TVL Color Board Camera w/CS Mount NTSC, 12VDC.


  • 600 TVL Resolution
  • CS Mount
  • 42 x 42 mm
  • 12 VDC

  • Applications:
  • Machine Vision
  • Inspection
  • Industrial
  • Factory Automation
  • Specifications
    Scanning System
    2:1 Interlace
    Image Sensor
    1/3” Type Inter line transfer CCD(Sony HAD II CCD)
    Effective Pixels
    768 (H) x 494 (V)
    Scanning Frequency
    15.734kHz (H) x 59.94Hz (V)
    Video Outpu 1.0Vp-p/75Ω
    Resolution 600 TVL
    Minimum Illumination 0.4 lux @F1.4
    Day/Night Digital D/N
    S/N Ratio More than 50dB (at minimum AGC gain)
    Gamma Characteristics 0.45
    Sync. System Internal only
    Electronic Shutter 1/60 ~1/100,000 (Selectable)
    White Balance ATW1, ATW2, AWC, Manual (Selectable)
    Power Supply 12VDC
    Power Consumption 1.1 Watt
    Temperature Operation: 14°F to 122°F (-10°C to +50°C) / Storage: -4°F to 140°F ( -20°C to +60°C)
    Humidity Operation : Max. 85%RH / Storage : Max. 95%RH
    Switches Multi Tact Switch for OSD control
    Dimensions 1.7” H x 1.7” W x 0.9” D (42mm H x 42mm W x 22mm D) (without lens)
