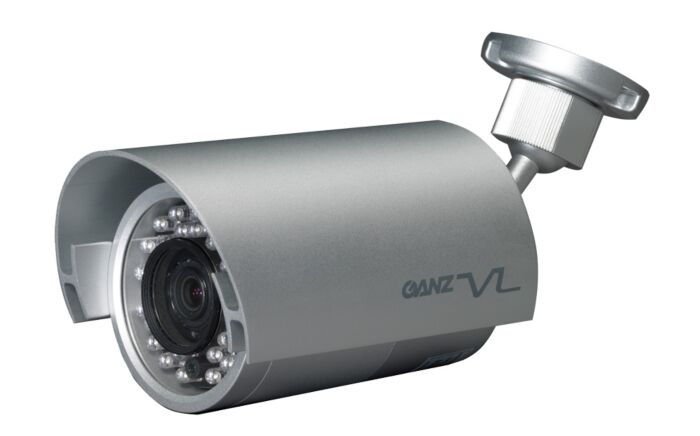

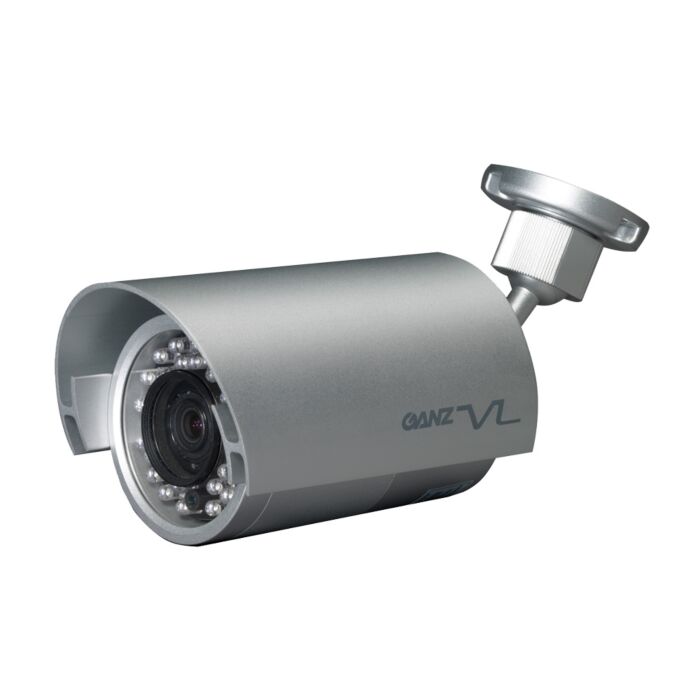

Ganz BCH-IR312NA-II Outdoor Digital Day/Night IR Bullet Camera
Outdoor Digital Day/Night IR Bullet Camera w/3.3-12mm varifocal, 540 TVL, 20 IR LEDs, 12/24
SKU
BCH-IR312NA-II
This outdoor Digital Day/Night IR camera features a stylish all weather outdoor housing for installations requiring discreet appearance and outdoor performance. Featuring a 3.3-12mm computar® IR coated varifocal lens, hi-res color and 20 IR LEDs provide up to 60' of illumination. Light activated photocell.
Features:
Applications:
| TV system | NTSC |
| Scanning system | 2:1 Interlace |
| Image sensor | 1/3”-Type Interline transfer CCD |
| Effective elements | 768 (H) x 494 (V) |
| Scanning frequency | Scanning frequency |
| Video output | 1.0V p-p / 75Ω |
| Horizontal resolution | 540 TVL |
| Min. Illuminance | 0 lux (B/W Mode - at IR LED ON) |
| Day / Night | Digital Day / Night |
| S/N ratio | More than 50 dB (at minimum AGC gain) |
| Gamma characteristic | 0.45 |
| IR Illumination | 20 IR LEDs |
| Sync. System | Internal only |
| Electronic shutter | 1/60 sec. (FL OFF), 1/100sec. (FL ON) * No FL function on ZC-BNX models |
| White balance | ATW |
| Power supply | AC 24V ± 10%, 60 ± 1Hz, DC 12V ± 10% |
| Power consumption DC 12V | 6W |
| Power consumption AC 24V | 5.5W |
| Ambient temperature | Operation: 14o F to +122o F / Storage: -4o F to +140o F |
| Ambient humidity | Operation: Max. 85%RH / Storage: Max. 95%RH |
| IP rating | IP66 |
| External dimensions | 4.6” (L) x 3.3” Ø (Including sunshield) |
| Weight | 1.4 lbs. (650g) |
| Adjustment | DC Iris, Easy Back Focus, AGC, BLC |
| Accessories | Wrench, Bracket Tapping Screw (M4x20 : 3pcs), Template, Instruction Manual, Additional Power Connector |
| Max. aperture ratio | 1:1.4 - 2.9 |
| Focal length | 3.3mm - 12mm |
| Iris (DC auto iris) | F1.4 - F360C |
| Angle of view (Wide to Tele) | D 125.70° - 29.90° H 89.80° - 23.90° V 63.60° - 17.90° |
