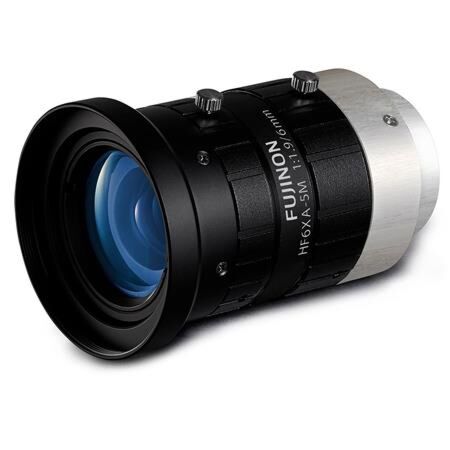

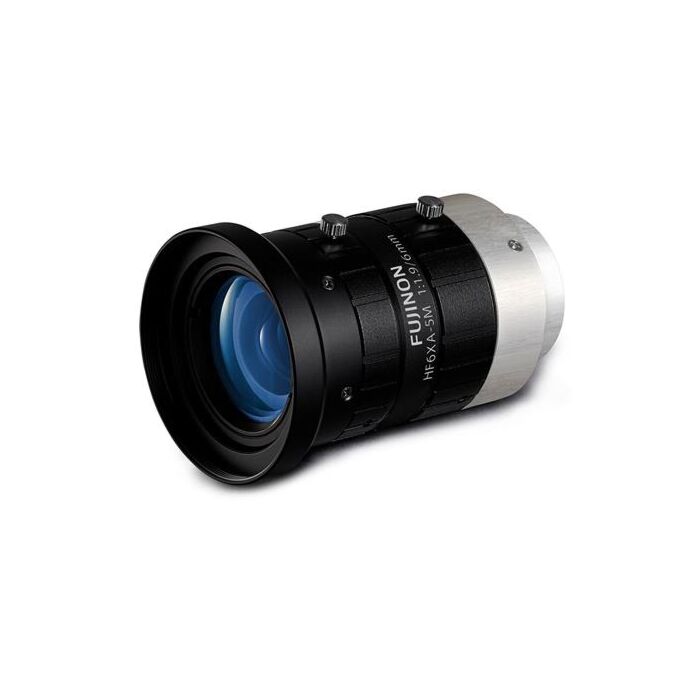

  • Fujinon HF6XA-5M Image # 1

HF6XA-5M: Fujinon 2/3" 6mm 5MP Machine Vision Lens (C-Mount)

Quick Overview

HF6XA-5M: Fujinon F1.9-F16, Angle of view (H x V) - *Mounted to 2/3” sensor cameras: 74.7° x 58.1°.

The Fujinon HF-XA-5M series features “4D High Resolution”**, which mitigates resolution degradation even when changing a working distance or aperture value. The lenses' compact design accommodates installation at a variety of conditions at production lines. The series is available in six models of various focal lengths, allowing users to choose the optimum model according to their usage.


  • C Mount for 2/3" Sensors
  • Manual Focus and Iris
  • Adjustable Locking Focus and Iris Knobs
  • f/1.9 to f/16
  • M25.5 Threaded Front for Filters

  • Applications:

  • Product Inspection Applications
  • Specifications
    Focal Length 6mm
    Iris Range F1.9-F16
    Angle of View (H x V)
    *Mounted to 2/3" sensor cameras
    74.7° x 58.1°
    Focus range (from front of the lens) (mm) ∞-100
    Operation Focus Manual
    Operation Iris Manual
    Filter Thread (mm) M37.5 x 0.5
    Mount C-Mount
    Sensor Size (max.) 2/3"
    TV distortion (%) -2.88
    Diameter (mm) φ39 x 51
    Mass in g 100
    Fixing knobs bundled 2
