Fujinon HF1618-12M Image 1

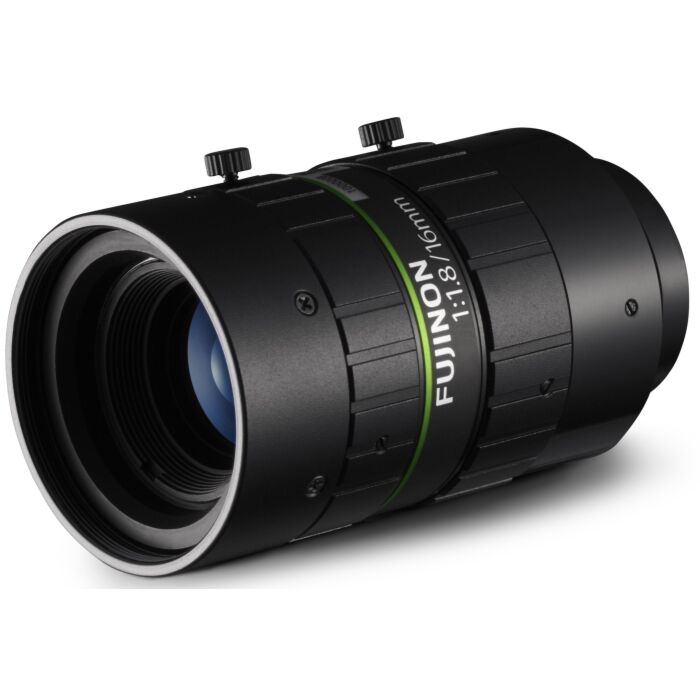

Fujinon HF1618-12M (HF161812M) 2/3" 16MM F1.8 Manual Iris 12MP Machine Vision Lens (C-Mount)

Fujinon HF3520-12M 2/3

Fujinon HF3520-12M (HF352012M) 2/3" 35mm F2.0 Manual Iris 12 MP Machine Vision Lens (C-Mount)

Fujinon HF2518-12M (HF251812M) 2/3" 25mm F1.8 Manual Iris 12 MP Machine Vision Lens (C-Mount)

The 25mm Fixed Lens from the Fujinon HF2518-12M is compatible with the 2/3" type sensor for capturing clear video.
SKU
HF2518-12M

This 25mm fixed lens has a 20° horizontal field of view to monitor a specific area. This 12 MP-equivalent lens is designed for use in machine vision applications.

Features:

  • For 2/3" Type Sensors
  • C-Mount
  • f/1.8-2.2 Aperture Range
  • 15.1° Field of View
  • Focal Length 25mm
    Applicable for pixel pitch 2.1µm
    Iris Range (F no.) F1.8-F22
    Distortion 0.02%
    Operation Focus Manual
    Operation Iris Manual
    Angle of View 2/3": 20.0° x 15.1°
    Minimum Object Distance (M.O.D) in m 0.1
    Focusing Range (from front lens) in m  0.1 ~ infinity
    Mount C-Mount
    Mass in g 85
    Lens Construction aspherical lens elements
    Filter Thread M30.5 x 0.5 mm
